W25Q16FWZPIQ - Winbond

Description: FLASH - NOR Memory IC 16Mb (2M x 8) SPI 104MHz 8-WSON (6x5)

Download W25Q16FWZPIQ Model

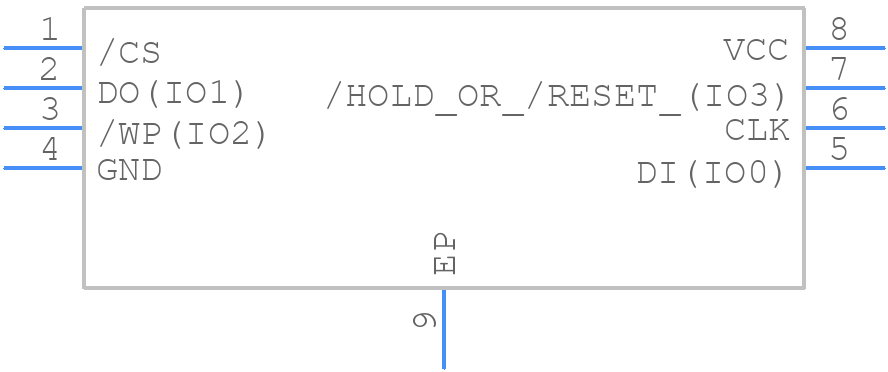

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q16FWZPIQ - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON 6x5-mm (Package Code ZP)
click to zoom
3D Models
W25Q16FWZPIQ - Winbond  - 3D model - Small Outline No-lead - 8-Pad WSON 6x5-mm (Package Code ZP)
click to zoom

W25Q16FWZPIQ Details

  • Manufacturer Part Number:

    W25Q16FWZPIQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    WSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    3

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5 mm

W25Q16FWZPIQ Frequently Asked Questions (FAQs)

  • The W25Q16FWZPIQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The hold pin (HOLD#) is used to pause the flash memory operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume. Make sure to check the datasheet for the specific timing requirements.
  • The recommended POR timing is to wait for at least 10ms after power-on before accessing the flash memory. This allows the internal voltage regulator to stabilize.
  • Yes, the W25Q16FWZPIQ is compatible with 1.8V power supplies. However, make sure to check the datasheet for the specific voltage range and operating conditions.
  • Wear leveling is a technique to extend the lifespan of the flash memory. Implementing wear leveling requires a combination of hardware and software design. Consult the datasheet and application notes for guidance on implementing wear leveling for the W25Q16FWZPIQ.
