W25Q16JLSNIG - Winbond

Description: Family of SpiFlash Memories – W25Q16JL: 16M-bit / 2M-byte (2,097,152) – 256-byte per programmable page – Standard SPI: CLK, /CS, DI, DO, /WP, /Hold – Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold – Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3  Highest Performance Serial Flash – 104MHz Dual SPI / Quad SPI clocks – 208/416MHz equivalent Dual/Quad SPI – 50MB/S continuous data transfer rate – Up to 4X that of ordinary Serial Flash – Min. 100K Program-Erase cycles per sector – More than 20-year data retention

Download W25Q16JLSNIG Model

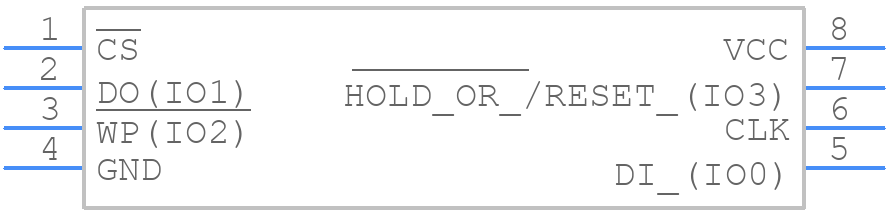

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q16JLSNIG - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC 150-mil (Package Code SN)
click to zoom
3D Models
W25Q16JLSNIG - Winbond  - 3D model - Small Outline Packages - 8-Pin SOIC 150-mil (Package Code SN)
click to zoom

W25Q16JLSNIG Details

  • Manufacturer Part Number:

    W25Q16JLSNIG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2017-07-25

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    5.3

  • Additional Feature:

    IT ALSO OPERATES AT FREQUENCY 50 MHZ AT SUPPLY VOLTAGE 2.3 TO 2.7 V

  • Alternate Memory Width:

    1

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

W25Q16JLSNIG Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the W25Q16JLSNIG is 104 MHz.
  • The W25Q16JLSNIG can endure up to 100,000 program/erase cycles before it starts to degrade.
  • The data retention period of the W25Q16JLSNIG is 20 years at a temperature of 25°C.
  • Yes, the W25Q16JLSNIG is compatible with the SPI, Dual SPI, and Quad SPI protocols.
  • The package type of the W25Q16JLSNIG is a 8-pin SOIC (Small Outline Integrated Circuit) package.
