W25Q16JLSSIG - Winbond

Description: 16Mb Serial NOR Flash 104MHz SOP8

Download W25Q16JLSSIG Model

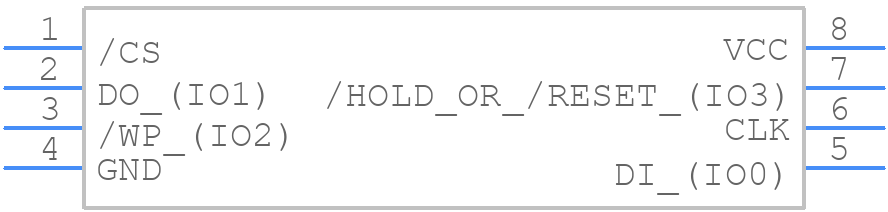

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q16JLSSIG - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - 8 pin soic--+-
click to zoom
3D Models
W25Q16JLSSIG - Winbond  - 3D model - Small Outline Packages - 8 pin soic--+-
click to zoom

W25Q16JLSSIG Details

  • Manufacturer Part Number:

    W25Q16JLSSIG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2017-07-25

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    5.3

  • Additional Feature:

    IT ALSO OPERATES AT FREQUENCY 50 MHZ AT SUPPLY VOLTAGE 2.3 TO 2.7 V

  • Alternate Memory Width:

    1

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    5.23 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    NOR TYPE

  • Width:

    5.23 mm

W25Q16JLSSIG Frequently Asked Questions (FAQs)

  • The W25Q16JLSSIG has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The hold pin (HOLD#) is used to pause the current operation and put the device in a low-power state. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
  • The recommended clock frequency for the W25Q16JLSSIG is up to 104 MHz, but it can operate at frequencies up to 133 MHz in fast mode.
  • The WP# pin is used to prevent accidental writes to the status register. To use it, pull the WP# pin high to enable write protection, and pull it low to disable write protection.
  • The power consumption of the W25Q16JLSSIG varies depending on the operating mode. In active mode, the typical current consumption is 15 mA at 104 MHz, and in standby mode, it is 10 μA.
