W25Q16JVSSIM - Winbond

Description: 16Mb Serial NOR Flash 133MHz SOP8

Download W25Q16JVSSIM Model
Schematic

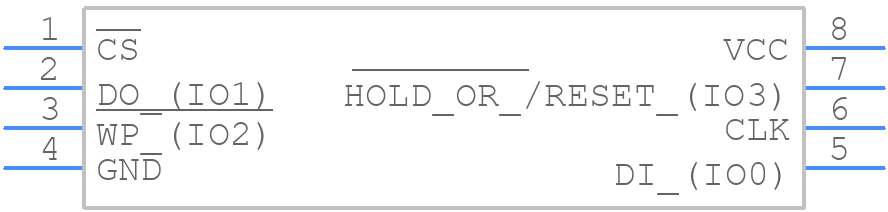

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q16JVSSIM - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC 208-mil (Package Code SS)
click to zoom
3D Models
W25Q16JVSSIM - Winbond  - 3D model - Small Outline Packages - 8-Pin SOIC 208-mil (Package Code SS)
click to zoom

W25Q16JVSSIM Details

  • Manufacturer Part Number:

    W25Q16JVSSIM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Alternate Memory Width:

    1

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    5.28 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.16 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.000015 A

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5.28 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q16JVSSIM Frequently Asked Questions (FAQs)

  • The W25Q16JVSSIM supports up to 100,000 erase cycles.
  • The hold pin (HOLD#) is used to pause the serial flash memory during a read or write operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
  • The WP# pin is a write-protect pin that allows you to protect the entire memory array or a specific sector from being written. To use it, pull the WP# pin low to enable write protection, and pull it high to disable write protection.
  • The optimal clock frequency depends on your specific application and system requirements. The W25Q16JVSSIM supports clock frequencies up to 104 MHz, but you may need to adjust the frequency based on your system's timing constraints and noise tolerance.
  • The main difference between the two is the operating temperature range. The W25Q16JVSSIM has an operating temperature range of -40°C to 85°C, while the W25Q16JVSSIQ has an operating temperature range of -40°C to 125°C.
