The W25Q16JWSSIM has a minimum of 100,000 erase cycles per sector, and a total of 1,000,000 erase cycles for the entire device.
The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC.
The recommended clock frequency for the W25Q16JWSSIM is up to 104 MHz. However, it's recommended to check the specific application and system requirements for the optimal clock frequency.
The WP# pin should be connected to VCC or left floating to enable write protection. Connecting it to GND will disable write protection. It's recommended to use an external pull-up resistor to VCC for added protection.
The main difference is the package type. The W25Q16JWSSIM is a SOIC-8 package, while the W25Q16JVSSIM is a VSOP-8 package. Both devices have the same electrical characteristics and functionality.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q16JWSSIM Overview

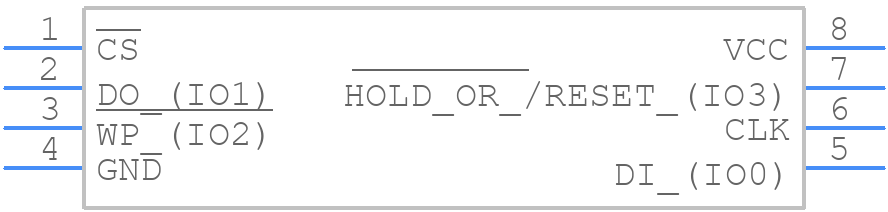

Use the download button to access the W25Q16JWSSIM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W25Q1,
or try a keyword search, such as Flash Memories
