W25Q256FVEIG - Winbond

Description: IC FLASH 256MBIT SPI/QUAD 8WSON

Download W25Q256FVEIG Model

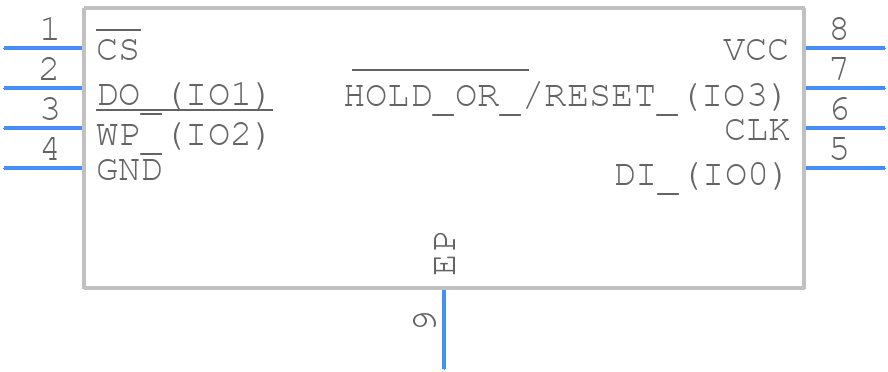

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q256FVEIG - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON 8x6
click to zoom
3D Models
W25Q256FVEIG - Winbond  - 3D model - Small Outline No-lead - 8-Pad WSON 8x6
click to zoom

W25Q256FVEIG Details

  • Manufacturer Part Number:

    W25Q256FVEIG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    WSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    80 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    8 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000025 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q256FVEIG Frequently Asked Questions (FAQs)

  • The W25Q256FVEIG has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and operating conditions.
  • The hold pin (HOLD#) is used to pause the current operation and put the device in a low-power state. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
  • The WP# pin is a write-protect pin that allows the user to protect the entire memory array or a portion of it from being written or erased. When WP# is low, the memory is write-protected.
  • The optimal clock frequency for the W25Q256FVEIG depends on the specific application and system requirements. The datasheet recommends a maximum clock frequency of 104 MHz, but the actual frequency may need to be adjusted based on system constraints and signal integrity.
  • The main difference between the W25Q256FVEIG and the W25Q256JVSIQ is the package type and operating temperature range. The W25Q256FVEIG is available in a VFQFPN 8x6mm package and operates from -40°C to 85°C, while the W25Q256JVSIQ is available in a VSOP 8-pin package and operates from -40°C to 125°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

W25Q256FVEIG Overview

Use the download button to access the W25Q256FVEIG schematic symbol, PCB footprint, and 3D model.
