W25Q256FVEIQ - Winbond

Description: 3V 256M-BIT SERIAL FLASH MEMORY WITH DUAL/QUAD SPI & QPI

Download W25Q256FVEIQ Model

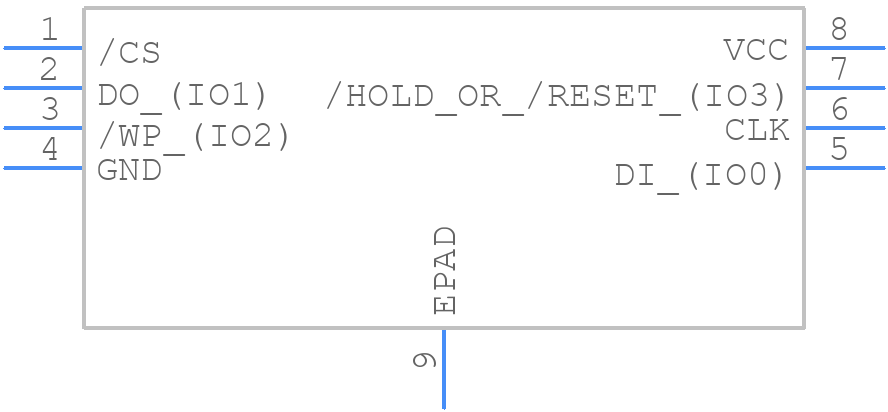

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q256FVEIQ - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - WSON8x6
click to zoom
3D Models
W25Q256FVEIQ - Winbond  - 3D model - Small Outline No-lead - WSON8x6
click to zoom

W25Q256FVEIQ Details

  • Manufacturer Part Number:

    W25Q256FVEIQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    WSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    8 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    6 mm

W25Q256FVEIQ Frequently Asked Questions (FAQs)

  • The W25Q256FVEIQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.
  • The hold pin (HOLD#) is used to pause the current operation and put the device in a low-power state. To use it, assert the HOLD# pin low to pause the operation, and then de-assert it to resume the operation.
  • The WP# pin is a write-protect pin that allows the user to protect the entire memory array or a portion of it from being written or erased. When WP# is low, the memory is write-protected.
  • The device density of the W25Q256FVEIQ is 256M bits, which is equivalent to 32M bytes or 4M words (16-bit words).
  • The recommended operating voltage range for the W25Q256FVEIQ is 2.7V to 3.6V, with a typical voltage of 3.3V.
