W25Q256JVBIM - Winbond

Description: 256M-bit Serial Flash Memory with uniform 4KB sectors and Dual/Quad SPI

Download W25Q256JVBIM Model

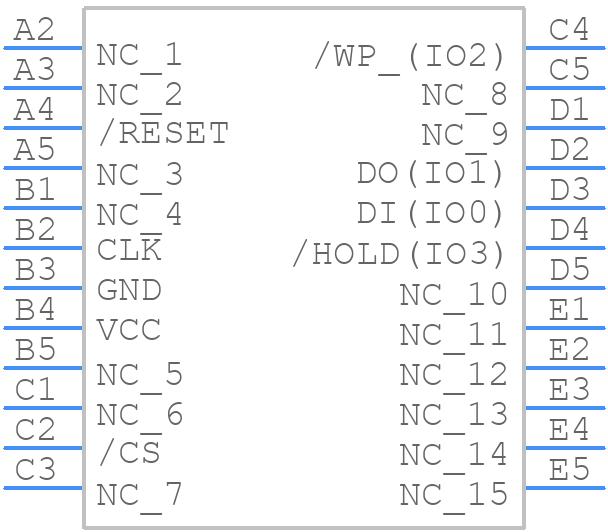

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q256JVBIM - Winbond PCB footprint - BGA - BGA - TFBGA24 Ball (6x8 mm2 (5x5-1 ball arrays)
click to zoom
3D Models
W25Q256JVBIM - Winbond  - 3D model - BGA - TFBGA24 Ball (6x8 mm2 (5x5-1 ball arrays)
click to zoom

W25Q256JVBIM Details

  • Manufacturer Part Number:

    W25Q256JVBIM

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6.35

  • Additional Feature:

    ALSO OPERATES AT 104MHZ AT 2.7-3.0V

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q256JVBIM Frequently Asked Questions (FAQs)

  • The W25Q256JVBIM has a minimum of 100,000 erase cycles per sector, and a total of 20,000,000 erase cycles for the entire device.
  • The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC.
  • The W25Q256JVBIM supports clock frequencies up to 104 MHz. However, it's recommended to use a clock frequency of 50 MHz or lower for reliable operation.
  • The WP# pin is an active low input that enables or disables the write protection feature. When WP# is low, the entire device is write-protected. When WP# is high, the device can be written to.
  • The QPI mode allows the W25Q256JVBIM to operate in a quad-bus interface mode, which enables faster data transfer rates and improved performance.
