W25Q256JVBJM - Winbond

Description: 256M-bit Serial Flash Memory with uniform 4KB sectors and Dual/Quad SPI

Download W25Q256JVBJM Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this W25Q256JVBJM model

Email notifications will be applied after download.

Send part feedback

Symbol

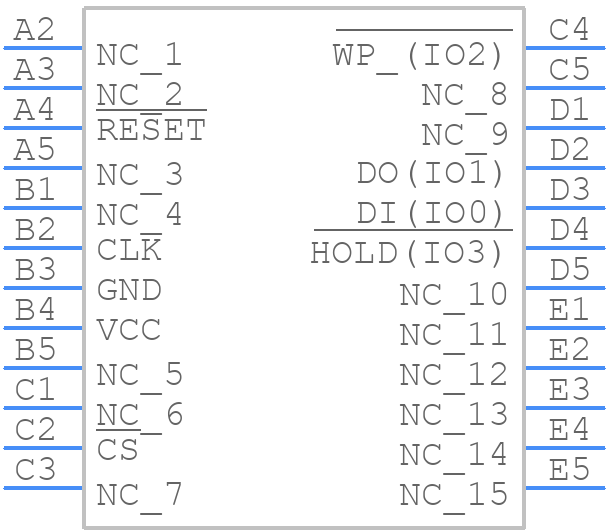

W25Q256JVBJM - Winbond - PCB symbol

PCB Footprints

W25Q256JVBJM - Winbond PCB footprint - BGA - BGA - TFBGA24 Ball (6x8 mm2 (5x5-1 ball arrays)

3D Models

W25Q256JVBJM - Winbond - 3D model - BGA - TFBGA24 Ball (6x8 mm2 (5x5-1 ball arrays)

Datasheet Download Datasheet
Stock & Prices Price & Stock for W25Q256JVBJM
Part Number W25Q256JVBJM
Manufacturer Winbond
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - TFBGA24 Ball (6x8 mm2 (5x5-1 ball arrays)
Released Date Oct 3, 2023
Last Modified Date Oct 3, 2023 7:22 AM UTC
Pinout / Pin List Click Here (Member Only)

W25Q256JVBJM Details

Manufacturer Part Number:
W25Q256JVBJM
Manufacturer:
Winbond Electronics Corp

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

W25Q256JVBJM Overview

Use the download button to access the W25Q256JVBJM schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like W25Q2, or try a keyword search, such as Flash Memories
