W25Q256JVCIQ - Winbond

Description: 256M-bit Serial Flash Memory with uniform 4KB sectors and Dual/Quad SPI

Download W25Q256JVCIQ Model

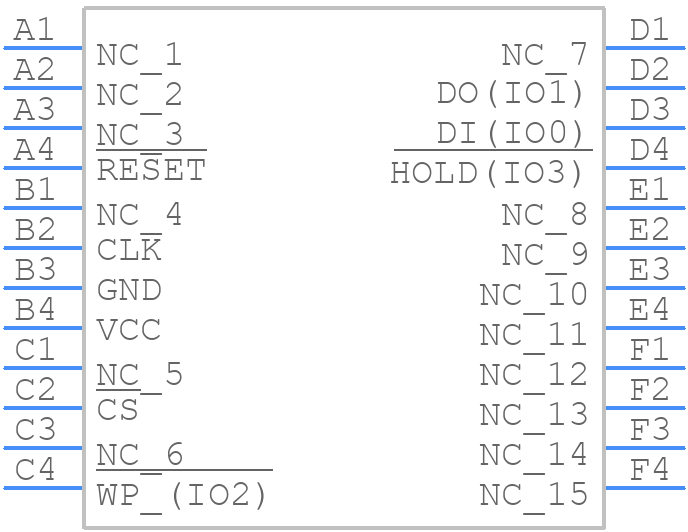

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q256JVCIQ - Winbond PCB footprint - BGA - BGA - TFBGA 8x6-mm
click to zoom
3D Models
W25Q256JVCIQ - Winbond  - 3D model - BGA - TFBGA 8x6-mm
click to zoom

W25Q256JVCIQ Details

  • Manufacturer Part Number:

    W25Q256JVCIQ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6.35

  • Additional Feature:

    ALSO OPERATES AT 104MHZ AT 2.7-3.0V

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,4X6,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q256JVCIQ Frequently Asked Questions (FAQs)

  • The W25Q256JVCIQ has a minimum of 100,000 erase cycles per sector, and a total of 20,000,000 erase cycles for the entire device.
  • The HOLD# pin should be pulled high during power-up and power-down to prevent unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC and a capacitor to GND to ensure a clean signal.
  • The W25Q256JVCIQ supports clock frequencies up to 133 MHz, but it's recommended to use a clock frequency of 50 MHz or lower for reliable operation.
  • The WP# pin is an active low input that enables or disables the write protection feature. To enable write protection, connect WP# to GND, and to disable it, connect WP# to VCC or leave it floating.
  • The W25Q256JVCIQ has a minimum data retention period of 20 years at a temperature of 25°C, and 10 years at a temperature of 55°C.
