W25Q256JVFIM - Winbond

Description: 256M-bit Serial Flash Memory with uniform 4KB sectors and Dual/Quad SPI

Download W25Q256JVFIM Model

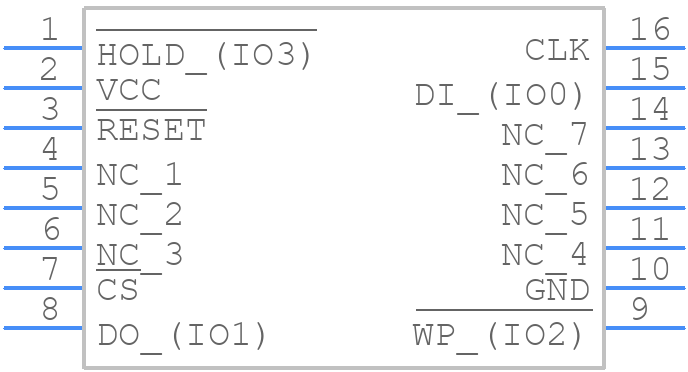

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q256JVFIM - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - W25Q256JVFIM
click to zoom
3D Models
W25Q256JVFIM - Winbond  - 3D model - Small Outline Packages - W25Q256JVFIM
click to zoom

W25Q256JVFIM Details

  • Manufacturer Part Number:

    W25Q256JVFIM

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6.1

  • Additional Feature:

    ALSO OPERATES AT 104MHZ AT 2.7-3.0V

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.31 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.64 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    NOR TYPE

  • Width:

    7.49 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q256JVFIM Frequently Asked Questions (FAQs)

  • The W25Q256JVFIM has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and operating conditions.
  • The hold pin (HOLD#) is used to pause the current operation and allow the host to perform other tasks. To use the hold pin, drive it low to pause the operation, and drive it high to resume the operation.
  • The WP# pin is a write-protect pin that allows the user to protect the entire memory array or a portion of it from being written or erased. When WP# is low, the memory is write-protected.
  • The device ID of the W25Q256JVFIM can be determined by sending the JEDEC ID command (0x9F) to the device. The device will respond with its 3-byte ID code, which is 0xEF 0x40 0x16 for the W25Q256JVFIM.
  • The recommended power-up sequence for the W25Q256JVFIM is to apply VCC first, followed by VSS, and then the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or other issues.
