W25Q256JWYIM TR - Winbond

Description: FLASH - NOR Memory IC 256Mb (32M x 8) SPI - Quad I/O, QPI, DTR 133 MHz 6 ns 32-WLCSP (3.98x3.19)

Download W25Q256JWYIM TR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this W25Q256JWYIM TR model

Email notifications will be applied after download.

Send part feedback

Symbol

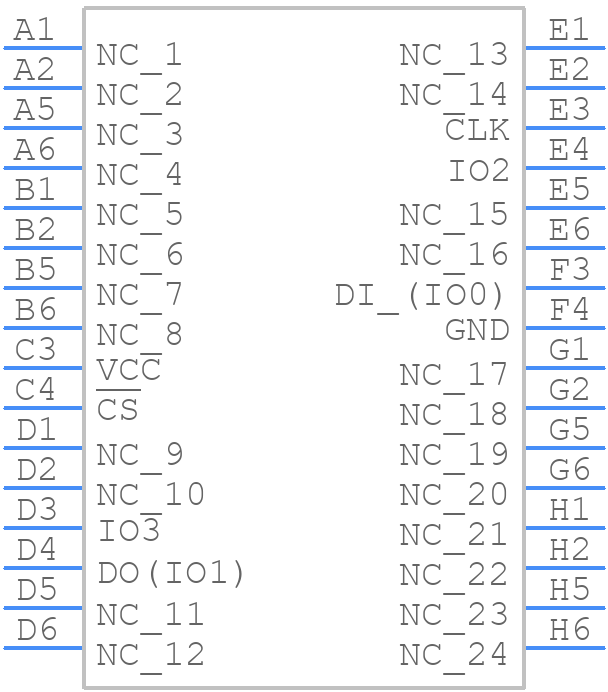

W25Q256JWYIM TR - Winbond - PCB symbol

PCB Footprints

W25Q256JWYIM TR - Winbond PCB footprint - BGA - BGA - 32-Ball WLCSP (Package Code Y, Ball pitch:0.50mm)

3D Models

W25Q256JWYIM TR - Winbond - 3D model - BGA - 32-Ball WLCSP (Package Code Y, Ball pitch:0.50mm)

Datasheet Download Datasheet
Stock & Prices Price & Stock for W25Q256JWYIM TR
Part Number W25Q256JWYIM TR
Manufacturer Winbond
Pin Count 32
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 32-Ball WLCSP (Package Code Y, Ball pitch:0.50mm)
Released Date Sep 9, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

W25Q256JWYIM TR Details

Manufacturer Part Number:
W25Q256JWYIM TR
Manufacturer:
Winbond Electronics Corp

Trust Checks

Community Provided

System Verified

Community Approved

W25Q256JWYIM TR Overview

Use the download button to access the W25Q256JWYIM TR schematic symbol, PCB footprint, and 3D model.
