W25Q32FWSSIG - Winbond

Description: NOR Flash spiFlash, 1.8V 32M-bit, 4Kb Uniform Sector

Download W25Q32FWSSIG Model

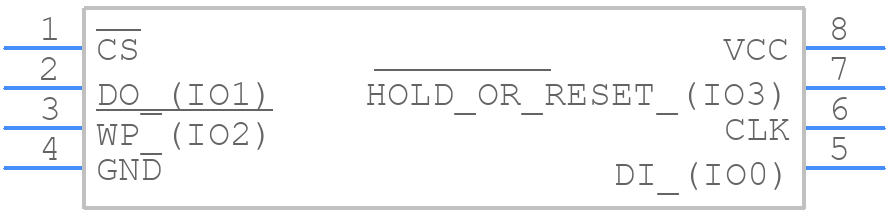

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q32FWSSIG - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - W25Q32FWSSIG
click to zoom
3D Models
W25Q32FWSSIG - Winbond  - 3D model - Small Outline Packages - W25Q32FWSSIG
click to zoom

W25Q32FWSSIG Details

  • Manufacturer Part Number:

    W25Q32FWSSIG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    104 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5.23 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.16 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5.23 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q32FWSSIG Frequently Asked Questions (FAQs)

  • The W25Q32FWSSIG has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The HOLD# signal is used to pause the flash memory operation. To use it, connect HOLD# to a GPIO pin and assert it low to pause the operation. Deassert it to resume the operation.
  • The WP# pin is used to protect the status register from being written. When WP# is low, the status register is write-protected. When WP# is high, the status register can be written.
  • The optimal clock frequency depends on the specific application and system requirements. The W25Q32FWSSIG supports clock frequencies up to 104 MHz. Consult the datasheet and application notes for guidance on selecting the optimal clock frequency.
  • The W25Q32FWSSIG is a specific package option (SOIC) with a specific temperature range (-40°C to 85°C). Other W25Q32F series parts may have different package options (e.g., QFN, BGA) or temperature ranges.
