W25Q32JVDAIQ - Winbond

Description: NOR Flash spiFlash, 32M-bit, DTR, 4Kb Uniform Sector

Download W25Q32JVDAIQ Model

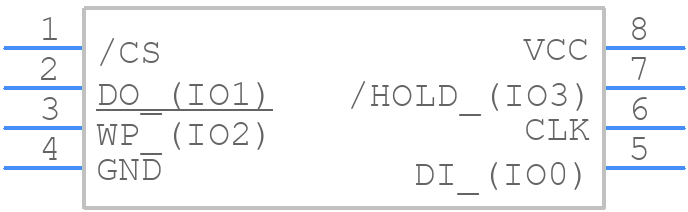

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q32JVDAIQ - Winbond PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-8  (Package Code DA)
click to zoom
3D Models
W25Q32JVDAIQ - Winbond  - 3D model - Dual-In-Line Packages - PDIP-8  (Package Code DA)
click to zoom

W25Q32JVDAIQ Details

  • Manufacturer Part Number:

    W25Q32JVDAIQ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.27 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    5.33 mm

  • Serial Bus Type:

    QSPI

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    7.62 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q32JVDAIQ Frequently Asked Questions (FAQs)

  • The W25Q32JVDAIQ supports up to 100,000 erase cycles.
  • The hold pin (HOLD#) is used to pause the current operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
  • The WP# pin is the write protect pin. When pulled low, it prevents writing to the status register and the memory array. When pulled high, writing is allowed.
  • The optimal clock frequency depends on the specific application and system requirements. The W25Q32JVDAIQ supports clock frequencies up to 104 MHz. Consult the datasheet and application notes for guidance on selecting the optimal clock frequency.
  • The W25Q32JVDAIQ is an industrial-grade device, while the W25Q32JVDAIQ-IM is an automotive-grade device. The main difference is the operating temperature range, with the industrial-grade device supporting -40°C to 85°C and the automotive-grade device supporting -40°C to 125°C.
