The W25Q32JVSNAQ has a minimum of 100,000 erase cycles per sector, and a total of 20,000,000 erase cycles for the entire device.
The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC.
The recommended clock frequency for the W25Q32JVSNAQ is up to 104 MHz. However, it's recommended to check the specific clock frequency requirements for your application and ensure that it's within the specified range.
The WP# pin should be pulled high during normal operation to allow write and erase operations. If the WP# pin is pulled low, the device will be in a protected state, and write and erase operations will be disabled.
The QPI mode allows the W25Q32JVSNAQ to operate in a quad-bus mode, which enables faster data transfer rates and improved performance. However, it requires specific hardware and software support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q32JVSNAQ Overview

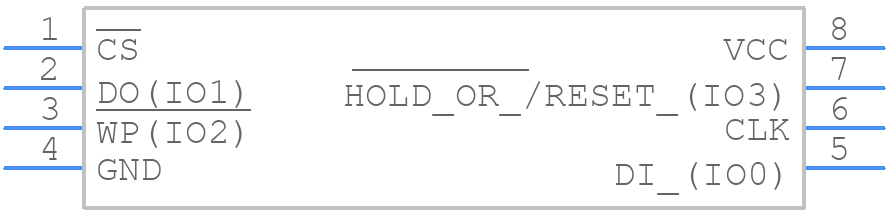

Use the download button to access the W25Q32JVSNAQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W25Q3,
or try a keyword search, such as Flash Memories
