The W25Q32JVSSIM has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
The HOLD# signal is used to pause the serial flash memory during a read or write operation. To use it, connect HOLD# to a GPIO pin on your microcontroller and assert it low to pause the operation. Deassert it to resume the operation.
The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures that the device is properly initialized and ready for operation.
The optimal clock frequency depends on the specific application and system requirements. The W25Q32JVSSIM supports clock frequencies up to 104 MHz. You should consider factors such as data transfer rate, power consumption, and system latency when selecting the clock frequency.
The WP# pin is used to prevent accidental writes to the device. When WP# is low, the device is in write-protect mode, and any write operations will be ignored. When WP# is high, the device is in normal operation mode.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q32JVSSIM Overview

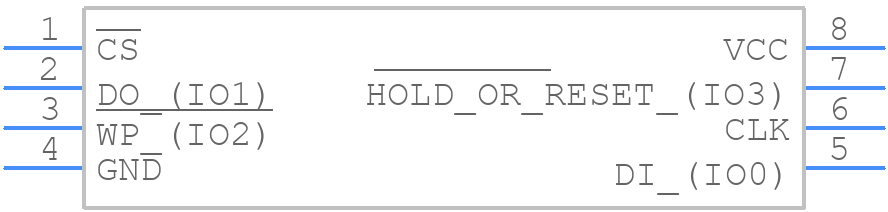

Use the download button to access the W25Q32JVSSIM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W25Q3,
or try a keyword search, such as Flash Memories
