The W25Q32JVSSJM has a minimum of 100,000 erase cycles per sector, and a total of 20,000,000 erase/program cycles for the entire device.
The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC and a capacitor to GND to ensure a clean signal.
The W25Q32JVSSJM supports clock frequencies up to 104 MHz. However, it's recommended to use a clock frequency of 50 MHz or lower for reliable operation and to minimize power consumption.
The WP# pin is an active low input that enables or disables the write protection feature. To enable write protection, connect WP# to GND. To disable write protection, connect WP# to VCC or leave it floating.
The W25Q32JVSSJM operates over a temperature range of -40°C to 85°C (industrial grade) and -40°C to 125°C (extended temperature range).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q32JVSSJM Overview

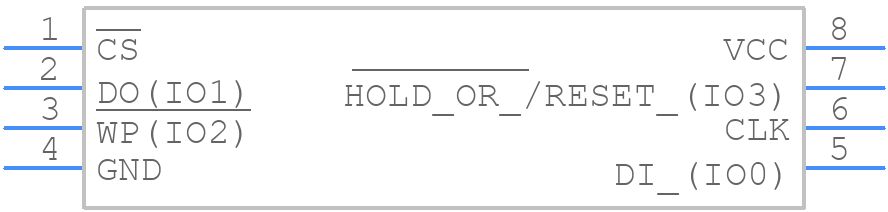

Use the download button to access the W25Q32JVSSJM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W25Q3,
or try a keyword search, such as Flash Memories
