W25Q32JVZPIQ - Winbond

Description: 32Mb Serial NOR Flash 133MHz SON8

Download W25Q32JVZPIQ Model
Schematic
symbols

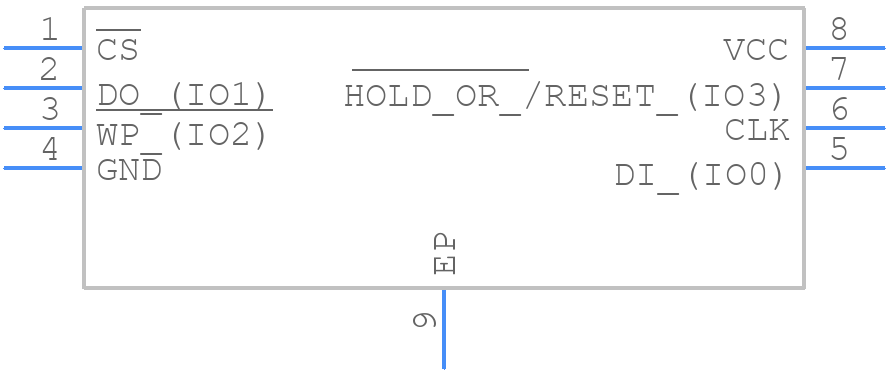

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q32JVZPIQ - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON 6x5-mm (Package Code ZP)
click to zoom
3D Models
W25Q32JVZPIQ - Winbond  - 3D model - Small Outline No-lead - 8-Pad WSON 6x5-mm (Package Code ZP)
click to zoom

W25Q32JVZPIQ Details

  • Manufacturer Part Number:

    W25Q32JVZPIQ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q32JVZPIQ Frequently Asked Questions (FAQs)

  • The W25Q32JVZPIQ has a minimum of 100,000 erase cycles, but the actual number may vary depending on usage and environmental conditions.
  • The hold pin (HOLD#) is used to pause the flash memory operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume. Make sure to check the datasheet for specific timing requirements.
  • The recommended clock frequency for the W25Q32JVZPIQ is up to 104 MHz, but it can operate at lower frequencies as well. Consult the datasheet for specific frequency and timing requirements.
  • The W25Q32JVZPIQ has a write protection feature that can be enabled or disabled using the WP# pin. To enable write protection, pull the WP# pin low, and to disable it, pull the WP# pin high.
  • The power consumption of the W25Q32JVZPIQ varies depending on the operating mode. In active mode, the typical current consumption is around 15 mA, and in standby mode, it is around 10 uA. Consult the datasheet for specific power consumption values.
