W25Q32JWSSIM - Winbond

Description: 32Mb Serial NOR Flash 133MHz SOP8

Download W25Q32JWSSIM Model

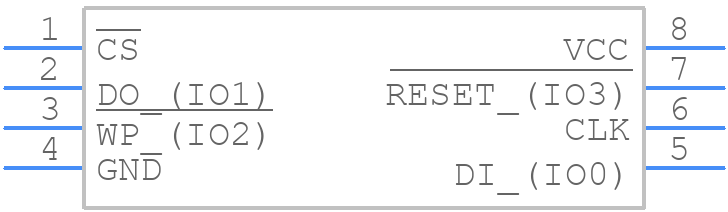

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q32JWSSIM - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC 208-mil (Package Code SS)
click to zoom
3D Models
W25Q32JWSSIM - Winbond  - 3D model - Small Outline Packages - 8-Pin SOIC 208-mil (Package Code SS)
click to zoom

W25Q32JWSSIM Details

  • Manufacturer Part Number:

    W25Q32JWSSIM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2017-12-21

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    5.5

  • Clock Frequency-Max (fCLK):

    133 MHz

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    5.23 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    2.16 mm

  • Serial Bus Type:

    QSPI

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    NOR TYPE

  • Width:

    5.23 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q32JWSSIM Frequently Asked Questions (FAQs)

  • The W25Q32JWSSIM supports up to 100,000 erase cycles.
  • The hold pin (HOLD#) is used to pause the serial flash memory during a read or write operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
  • The WP# pin is the write protect pin. When pulled low, it prevents writing to the status register and the memory array. To use it, pull the WP# pin low to enable write protection, and pull it high to disable write protection.
  • The optimal clock frequency depends on the specific application and system requirements. The W25Q32JWSSIM supports clock frequencies up to 104 MHz. You should consult the datasheet and application notes to determine the optimal clock frequency for your specific use case.
  • The main difference between the two is the package type and operating temperature range. The W25Q32JWSSIM is a SOIC package with an operating temperature range of -40°C to 85°C, while the W25Q32JVSSIQ is a VSOP package with an operating temperature range of -40°C to 125°C. Choose the one that best fits your application's requirements.
