W25Q512JVBIM - Winbond

Description: 512Mb Serial NOR Flash 133MHz TFBGA (5X5)24

Download W25Q512JVBIM Model

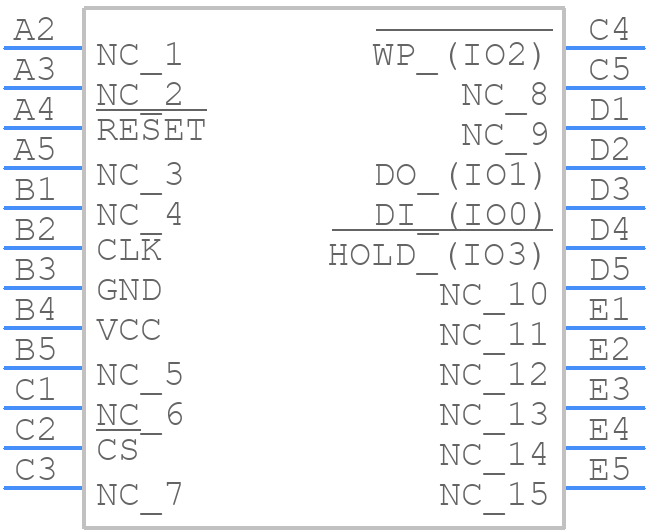

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q512JVBIM - Winbond PCB footprint - BGA - BGA - 24-Ball TFBGA 8x6-mm*
click to zoom
3D Models
W25Q512JVBIM - Winbond  - 3D model - BGA - 24-Ball TFBGA 8x6-mm*
click to zoom

W25Q512JVBIM Details

  • Manufacturer Part Number:

    W25Q512JVBIM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6.25

  • Alternate Memory Width:

    1

  • Clock Frequency-Max (fCLK):

    133 MHz

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    6 mm

W25Q512JVBIM Frequently Asked Questions (FAQs)

  • The W25Q512JVBIM has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.
  • The HOLD# pin is used to pause the current operation and allow the host to perform other tasks. To use it, pull the HOLD# pin low to pause the operation, and then pull it high to resume the operation.
  • The WP# (Write Protect) pin is used to prevent accidental writes to the status register. When WP# is low, the status register is write-protected, and when WP# is high, the status register can be written to.
  • To perform a sector erase, send the Sector Erase command (0x20) followed by the address of the sector to be erased. The device will then erase the entire sector.
  • The main difference is the operating temperature range. The W25Q512JVBIM has an operating temperature range of -40°C to 85°C, while the W25Q512JVBIQ has an operating temperature range of -40°C to 125°C.
