W25Q512NWBIM - Winbond

Description: 512Mb Serial NOR Flash 133MHz TFBGA (5X5)24

Download W25Q512NWBIM Model

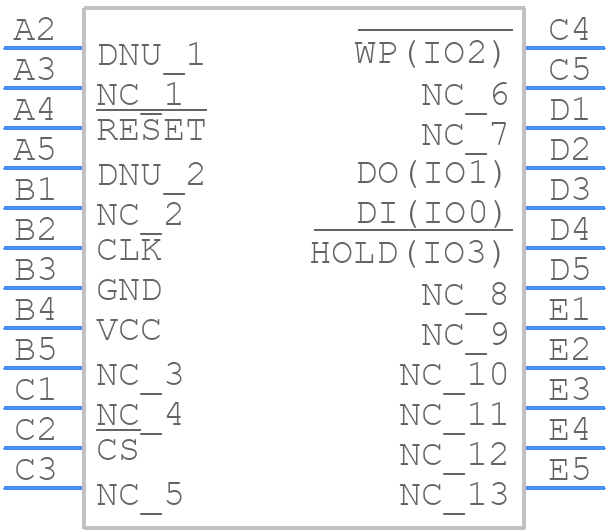

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q512NWBIM - Winbond PCB footprint - BGA - BGA - Package Outline TFBGA24 Ball (6x8 mm2 (5x5-1 ball arrays)
click to zoom
3D Models
W25Q512NWBIM - Winbond  - 3D model - BGA - Package Outline TFBGA24 Ball (6x8 mm2 (5x5-1 ball arrays)
click to zoom

W25Q512NWBIM Details

  • Manufacturer Part Number:

    W25Q512NWBIM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6.25

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q512NWBIM Frequently Asked Questions (FAQs)

  • The W25Q512NWBIM has a minimum of 100,000 erase cycles per sector, and a total of 20,000,000 erase cycles for the entire device.
  • The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC.
  • The W25Q512NWBIM supports clock frequencies up to 133 MHz. However, it's recommended to use a clock frequency of 100 MHz or lower for reliable operation.
  • The WP# pin is used to enable or disable write protection for the status register. To enable write protection, connect WP# to VCC. To disable write protection, connect WP# to GND.
  • The main difference is the package type and operating temperature range. The W25Q512NWBIM is a 8-pin WSON package with an operating temperature range of -40°C to 85°C, while the W25Q512JVSIQ is a 8-pin VSOP package with an operating temperature range of -40°C to 125°C.
