W25Q512NWFIM - Winbond

Description: 512Mb Serial NOR Flash 133MHz SOP16

Download W25Q512NWFIM Model

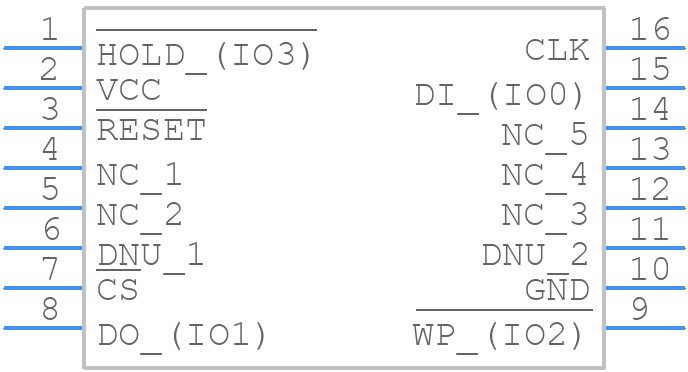

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q512NWFIM - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - 16 PIN SOIC 300-MIL SF
click to zoom
3D Models
W25Q512NWFIM - Winbond  - 3D model - Small Outline Packages - 16 PIN SOIC 300-MIL SF
click to zoom

W25Q512NWFIM Details

  • Manufacturer Part Number:

    W25Q512NWFIM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.31 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    2.64 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    7.49 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q512NWFIM Frequently Asked Questions (FAQs)

  • The W25Q512NWFIM has a minimum of 100,000 erase cycles per sector, and a minimum of 10,000 erase cycles per block.
  • The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC.
  • The recommended clock frequency for the W25Q512NWFIM is up to 104 MHz for standard SPI mode, and up to 208 MHz for dual/quad SPI mode.
  • The WP# pin should be pulled high to enable write protection. When WP# is low, the device is in write-enable mode. It's recommended to connect a pull-up resistor to VCC to prevent accidental writes.
  • The latency for the W25Q512NWFIM is typically around 30-40 ns for read operations, and around 10-20 us for write operations.
