W25Q64FVSSIG - Winbond

Description: 3V 64M-BIT SERIAL FLASH MEMORY WITH DUAL/QUAD SPI & QPI, SOIC-8

Download W25Q64FVSSIG Model
Schematic

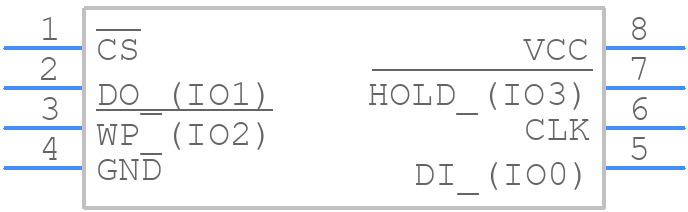

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q64FVSSIG - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC 208-mil (Package Code S)_1
click to zoom
3D Models
W25Q64FVSSIG - Winbond  - 3D model - Small Outline Packages - 8-Pin SOIC 208-mil (Package Code S)_1
click to zoom

W25Q64FVSSIG Details

  • Manufacturer Part Number:

    W25Q64FVSSIG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Alternate Memory Width:

    1

  • Clock Frequency-Max (fCLK):

    104 MHz

  • Data Retention Time-Min:

    20

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5.28 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.16 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00005 A

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.28 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q64FVSSIG Frequently Asked Questions (FAQs)

  • The W25Q64FVSSIG has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The hold pin (HOLD#) is used to pause the current operation and put the device in a low-power state. To use it, assert the HOLD# pin low to pause the operation, and then de-assert it to resume the operation.
  • The WP# pin is a write-protect pin that allows the user to protect the entire memory array or a portion of it from being written or erased. When the WP# pin is low, the memory is write-protected.
  • The device density of the W25Q64FVSSIG is 64 Mbits, which is equivalent to 8 MBytes.
  • The W25Q64FVSSIG operates from a single 2.7V to 3.6V power supply.
