The W25Q64JVSSIQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
The hold pin (HOLD#) is used to pause the flash memory operation. To use it, connect the HOLD# pin to the system's control signal, and assert it low to pause the operation. De-assert the HOLD# pin to resume the operation.
The WP# pin is the write protect pin. When it is low, the entire memory array is protected from write operations. To use it, connect the WP# pin to the system's control signal, and assert it low to enable write protection.
The recommended power-up sequence is to apply VCC first, followed by VSS, and then the input signals. This ensures that the device powers up correctly and minimizes the risk of latch-up.
To enter deep power-down mode, send the DPD command (B9h) to the device. In this mode, the device consumes very low power. To exit DPD, send a reset command (RST) or a read command.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q64JVSSIQ Overview

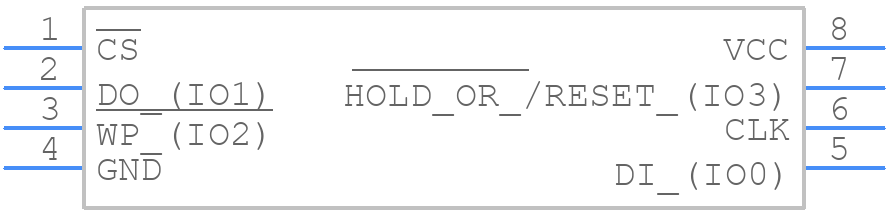

Use the download button to access the W25Q64JVSSIQ schematic symbol, PCB footprint, and 3D model.
