The W25Q64JVSSSQ has a minimum of 100,000 erase cycles per sector, and a total of 20,000,000 erase cycles for the entire device.
The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC and a capacitor to GND to ensure a clean signal.
The W25Q64JVSSSQ supports clock frequencies up to 133 MHz. However, it's recommended to use a clock frequency of 100 MHz or lower to ensure reliable operation and minimize power consumption.
The WP# pin is an active low input that enables or disables the write protection feature. When WP# is low, the entire device is write-protected. When WP# is high, the device can be written to. It's recommended to connect a pull-up resistor to VCC to enable write protection by default.
The deep power-down mode is a low-power state that reduces the device's power consumption to a minimum. It's useful for battery-powered devices or applications where power consumption needs to be minimized. In this mode, the device is not accessible, and all internal operations are halted.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q64JVSSSQ Overview

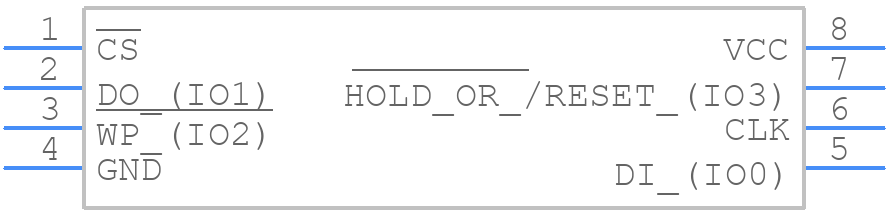

Use the download button to access the W25Q64JVSSSQ schematic symbol, PCB footprint, and 3D model.
