W25Q64JVTCIQ - Winbond

Description: 64Mb Serial NOR Flash 133MHz TFBGA (4X6)24

Download W25Q64JVTCIQ Model

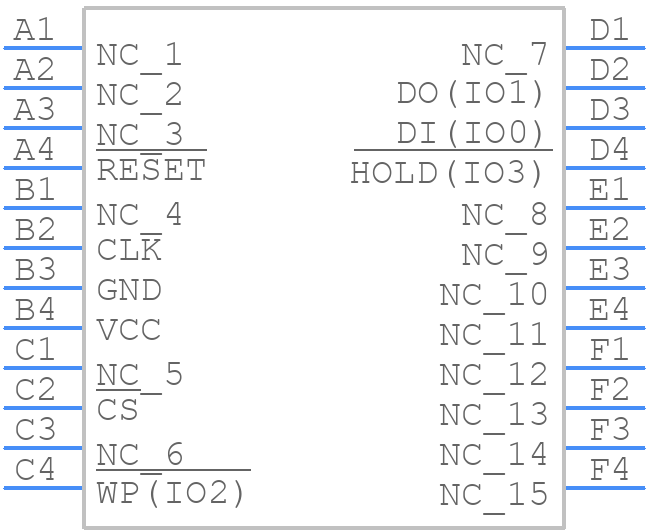

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q64JVTCIQ - Winbond PCB footprint - BGA - BGA - W25M512JVCSM*
click to zoom
3D Models
W25Q64JVTCIQ - Winbond  - 3D model - BGA - W25M512JVCSM*
click to zoom

W25Q64JVTCIQ Details

  • Manufacturer Part Number:

    W25Q64JVTCIQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,4X6,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.000015 A

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q64JVTCIQ Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the W25Q64JVTCIQ is 104 MHz.
  • The W25Q64JVTCIQ can endure up to 100,000 program/erase cycles before it starts to degrade.
  • The data retention period of the W25Q64JVTCIQ is 20 years at a temperature of 25°C.
  • Yes, the W25Q64JVTCIQ is compatible with the SPI, Dual SPI, and Quad SPI protocols.
  • The package type of the W25Q64JVTCIQ is a 8-pin VSOP (Very Small Outline Package).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

W25Q64JVTCIQ Overview

Use the download button to access the W25Q64JVTCIQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W25Q6, or try a keyword search, such as Flash Memories
