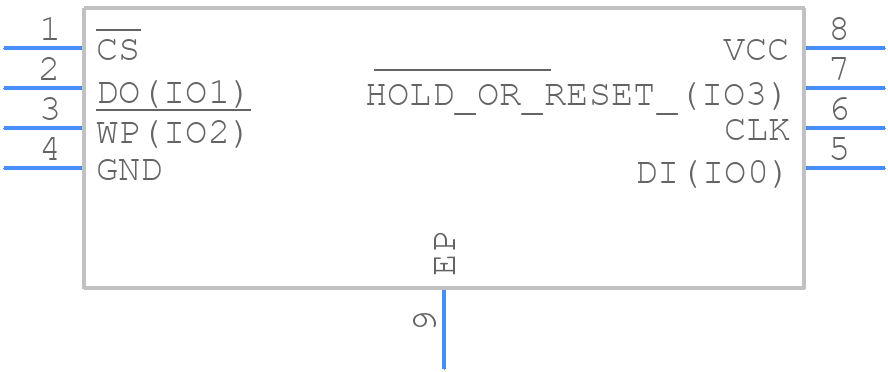

W25Q64JVXGIQ - Winbond

W25Q64JVXGIQ Frequently Asked Questions (FAQs)

• What is the maximum number of erase cycles for the W25Q64JVXGIQ?
  The W25Q64JVXGIQ has a minimum of 100,000 erase cycles per sector, and a total of 1,000,000 erase cycles for the entire device.
• How do I handle the hold pin (HOLD#) during power-up and power-down?
  The hold pin (HOLD#) should be pulled high during power-up and power-down to prevent the device from entering a state where it may not respond to commands. It's recommended to connect a pull-up resistor to VCC and a capacitor to GND to ensure a clean signal.
• What is the recommended clock frequency for the SPI interface?
  The W25Q64JVXGIQ supports clock frequencies up to 104 MHz, but it's recommended to use a clock frequency of 50 MHz or lower to ensure reliable operation and minimize power consumption.
• How do I handle the WP# pin to prevent accidental writes?
  The WP# pin should be pulled high to enable write protection. When WP# is low, the device is in write-enable mode, and when WP# is high, the device is in write-protect mode. It's recommended to connect a pull-up resistor to VCC to ensure the device is in write-protect mode by default.
• What is the purpose of the Deep Power-Down (DP) mode?
  The Deep Power-Down (DP) mode is a low-power state that reduces the device's power consumption to a minimum. It's intended for use in battery-powered devices or systems that require low power consumption during idle periods. In DP mode, the device's internal voltage regulator is disabled, and the device can only be awakened by a hardware reset or a power cycle.
