W25Q64JVXGJM - Winbond

Description: FLASH - NOR Memory IC 64Mbit SPI - Quad I/O 133 MHz 8-XSON (4x4)

Download W25Q64JVXGJM Model
Schematic

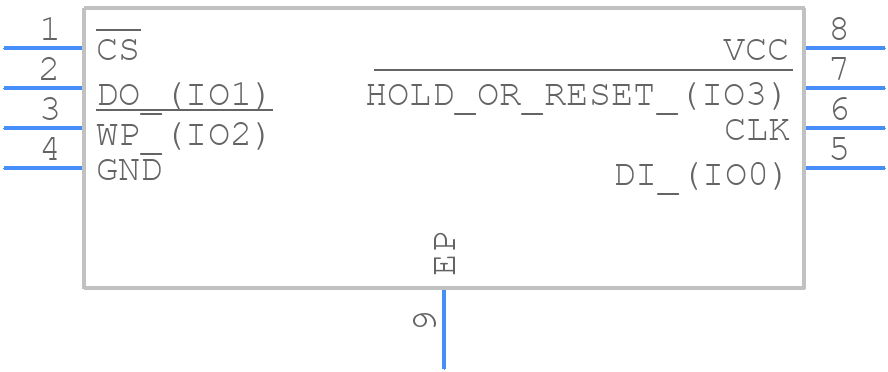

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q64JVXGJM - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad XSON 4x4x0.45-mm (Package Code XG)
click to zoom
3D Models
W25Q64JVXGJM - Winbond  - 3D model - Small Outline No-lead - 8-Pad XSON 4x4x0.45-mm (Package Code XG)
click to zoom

W25Q64JVXGJM Details

  • Manufacturer Part Number:

    W25Q64JVXGJM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2018-04-03

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    4 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HXSON

  • Package Equivalence Code:

    SOLCC8,.15,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, EXTREMELY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.5 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.000015 A

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    4 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q64JVXGJM Frequently Asked Questions (FAQs)

  • The W25Q64JVXGJM has a minimum of 100,000 erase cycles per sector, and a total of 20,000,000 erase cycles for the entire device.
  • The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC.
  • The W25Q64JVXGJM supports clock frequencies up to 104 MHz. However, it's recommended to use a clock frequency of 50 MHz or lower for reliable operation.
  • The WP# pin should be connected to VCC to enable write protection. When WP# is low, the device is in write-enable mode. When WP# is high, the device is in write-protect mode.
  • The deep power-down mode is used to reduce power consumption to a minimum. In this mode, the device is in a low-power state, and all internal circuits are powered down. The device can be awakened by a reset or a falling edge on the CS# pin.
