SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Parallel/Serial:
SERIAL
Programming Voltage:
3 V
Seated Height-Max:
0.8 mm
Serial Bus Type:
QSPI
Standby Current-Max:
0.000015 A
Supply Current-Max:
0.02 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Type:
NOR TYPE
Width:
5 mm
Write Protection:
HARDWARE/SOFTWARE
W25Q64JVZPIQ Frequently Asked Questions (FAQs)
The W25Q64JVZPIQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
The HOLD# signal is used to pause the flash memory operation. To use it, connect HOLD# to a GPIO pin and assert it low to pause the operation. Deassert HOLD# to resume the operation.
The recommended POR timing is to hold the reset signal low for at least 10ms after power-on to ensure the device is properly initialized.
Yes, the W25Q64JVZPIQ is compatible with 1.8V power supplies. However, ensure that the input signals are within the recommended voltage range to avoid any issues.
Wear leveling is a software-based technique to evenly distribute erase cycles across the device. Implement a wear leveling algorithm in your firmware to ensure the device's lifespan is maximized.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q64JVZPIQ Overview

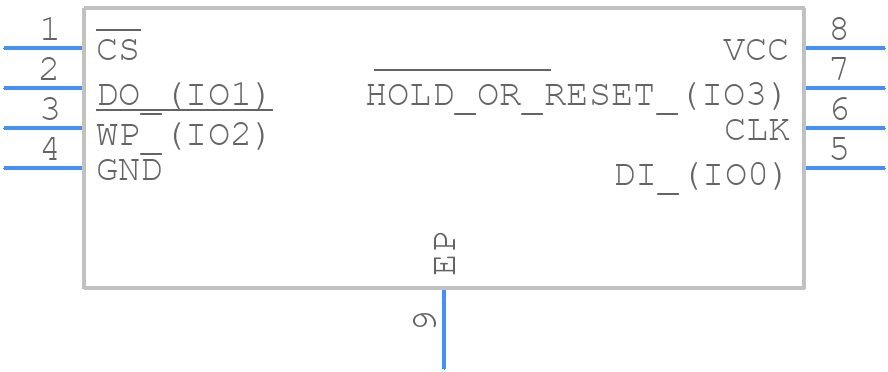

Use the download button to access the W25Q64JVZPIQ schematic symbol, PCB footprint, and 3D model.
