The W25Q64JWZPIM has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.
The HOLD# pin is used to pause the current operation and put the device in a low-power state. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
The WP# pin is a write-protect pin that allows the user to protect the entire memory array or a portion of it from being written or erased. When WP# is low, the memory is write-protected.
The optimal clock frequency depends on the specific application and system requirements. The W25Q64JWZPIM supports clock frequencies up to 104 MHz, but the actual frequency used should be determined based on the system's clock speed and timing requirements.
The main difference between the two is the operating voltage range. The W25Q64JWZPIM operates from 2.7V to 3.6V, while the W25Q64JVZPIM operates from 2.3V to 3.6V. The 'J' in the part number indicates a wider voltage range, while the 'V' indicates a lower voltage range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q64JWZPIM Overview

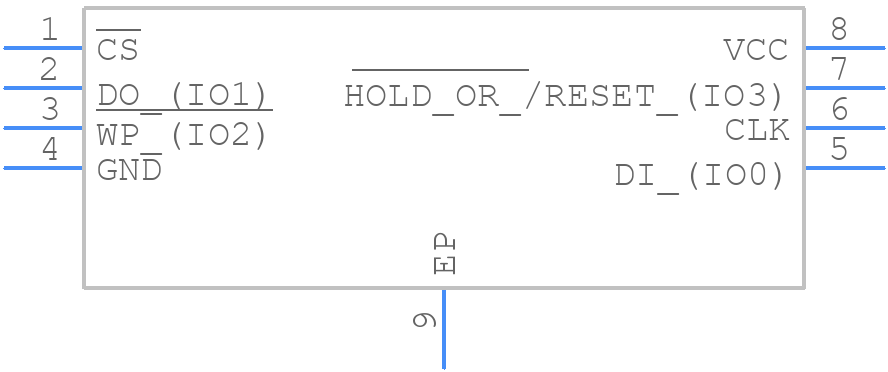

Use the download button to access the W25Q64JWZPIM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W25Q6,
or try a keyword search, such as Flash Memories
