The W25Q80JVSNIQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.
The HOLD# signal should be kept low during read and write operations. If the HOLD# signal is asserted high, the device will enter a 'hold' state, and all operations will be paused until the signal is de-asserted.
The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures proper device initialization and prevents latch-up conditions.
The WP# signal should be tied low to enable write operations. If WP# is tied high, the device will be in a write-protected state, and all write operations will be ignored.
The maximum operating frequency for the W25Q80JVSNIQ is 104 MHz, but the actual frequency may vary depending on the specific application and system design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q80JVSNIQ Overview

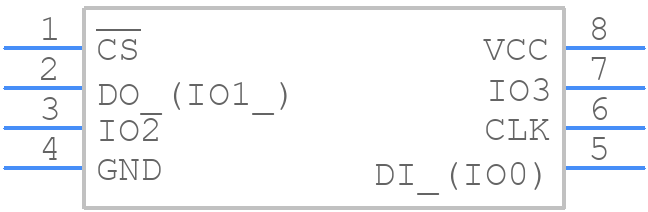

Use the download button to access the W25Q80JVSNIQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W25Q8,
or try a keyword search, such as Flash Memories
