The W25X10CLSNIG has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
The HOLD# signal should be kept low during a write operation to prevent any other device from accessing the flash memory. If another device tries to access the flash memory during a write operation, it may cause data corruption or other issues.
The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures that the device is properly initialized and ready for operation.
The optimal clock frequency depends on the specific application and system requirements. The W25X10CLSNIG can operate at frequencies up to 104 MHz, but the actual frequency used should be determined based on the system's clock speed, data transfer rate, and other factors.
The WP# pin is used to prevent accidental writes to the flash memory. When the WP# pin is low, the device is in write-protect mode, and any write operations will be ignored. When the WP# pin is high, the device is in normal operation mode, and write operations are allowed.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25X10CLSNIG Overview

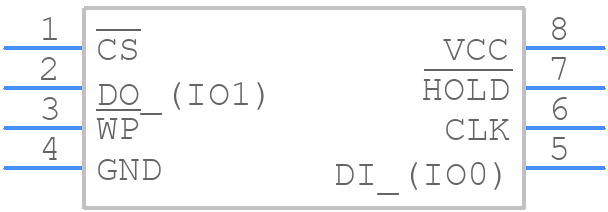

Use the download button to access the W25X10CLSNIG schematic symbol, PCB footprint, and 3D model.
