Part Image

W25X10CLUXIG - Winbond

Description: 1Mb Serial NOR Flash 104MHz SON8

Download W25X10CLUXIG Model

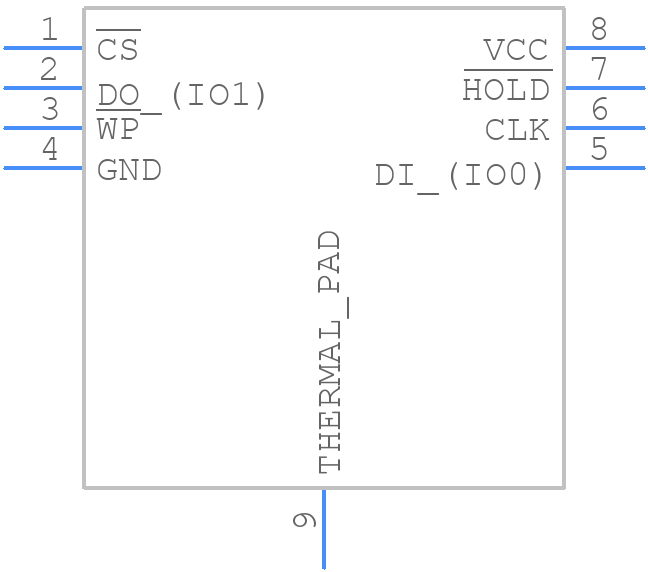

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25X10CLUXIG - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad 8-Pad USON 2x3-mm (Package Code UX)
click to zoom
3D Models
W25X10CLUXIG - Winbond  - 3D model - Small Outline No-lead - 8-Pad 8-Pad USON 2x3-mm (Package Code UX)
click to zoom

W25X10CLUXIG Details

  • Manufacturer Part Number:

    W25X10CLUXIG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Package Description:

    USON-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO OPERATES AT 2.3 V AT 80 MHZ

  • Clock Frequency-Max (fCLK):

    104 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    3 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000005 A

  • Supply Current-Max:

    0.015 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    2 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25X10CLUXIG Frequently Asked Questions (FAQs)

  • The W25X10CLUXIG supports up to 100,000 erase cycles.
  • The W25X10CLUXIG uses a page-based programming and erasure mechanism, where each page is 256 bytes. The device can program and erase data in pages, allowing for efficient data storage and retrieval.
  • The WP# (Write Protect) pin is used to prevent accidental writes to the device. When the WP# pin is low, the device is in write-protect mode, and any write operations will be ignored.
  • The W25X10CLUXIG has a built-in power-on reset circuit that ensures the device is in a known state after power-up. During power-down, the device automatically enters a low-power state to minimize power consumption.
  • The W25X10CLUXIG operates over a temperature range of -40°C to 85°C, making it suitable for a wide range of applications.
