Part Image

W25X40BVSNIG - Winbond

Description: IC FLASH 4MBIT SPI 104MHZ 8SOIC

Download W25X40BVSNIG Model

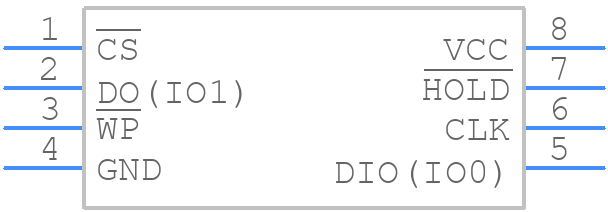

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25X40BVSNIG - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC8 150-mil (Package Code SN)
click to zoom
3D Models
W25X40BVSNIG - Winbond  - 3D model - Small Outline Packages - 8-Pin SOIC8 150-mil (Package Code SN)
click to zoom

W25X40BVSNIG Details

  • Manufacturer Part Number:

    W25X40BVSNIG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    80 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.85 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    524288 words

  • Number of Words Code:

    512000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.72 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000005 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    3.9 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25X40BVSNIG Frequently Asked Questions (FAQs)

  • The W25X40BVSNIG supports up to 100,000 erase cycles.
  • The W25X40BVSNIG uses a page-based programming and erasure mechanism, where each page is 256 bytes. The device can program and erase data in pages, allowing for efficient data storage and retrieval.
  • The WP# (Write Protect) pin is used to prevent accidental writes to the device. When the WP# pin is low, the device is in write-protect mode, and any write operations are ignored.
  • The W25X40BVSNIG has a built-in power-on reset circuit that initializes the device upon power-up. During power-down, the device automatically enters a low-power standby mode to conserve power.
  • The recommended operating voltage range for the W25X40BVSNIG is 2.7V to 3.6V.
