W25X40CLZPIG - Winbond

Description: 4Mb Serial NOR Flash 104MHz SON8

Download W25X40CLZPIG Model

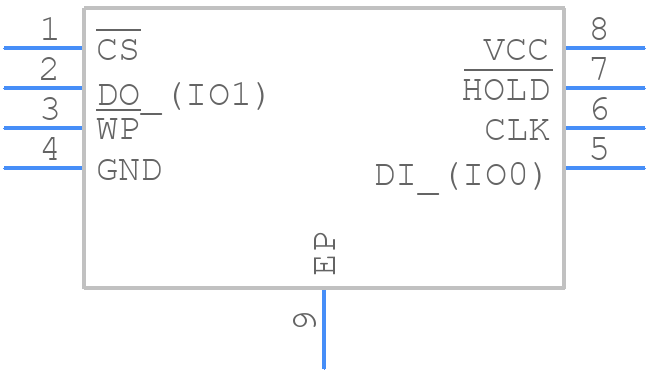

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25X40CLZPIG - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad 6x5mm WSON (Package Code ZP)/*
click to zoom
3D Models
W25X40CLZPIG - Winbond  - 3D model - Small Outline No-lead - 8-Pad 6x5mm WSON (Package Code ZP)/*
click to zoom

W25X40CLZPIG Details

  • Manufacturer Part Number:

    W25X40CLZPIG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SON

  • Package Description:

    6 X 5 MM, GREEN, PLASTIC, WSON-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO OPERATES AT 2.3 V AT 80 MHZ

  • Clock Frequency-Max (fCLK):

    104 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    524288 words

  • Number of Words Code:

    512000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000005 A

  • Supply Current-Max:

    0.015 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25X40CLZPIG Frequently Asked Questions (FAQs)

  • The W25X40CLZPIG supports up to 100,000 erase cycles.
  • The HOLD# signal should be kept low during a write operation to prevent any other device from accessing the flash memory.
  • The WP# pin is used to prevent accidental writes to the status register. When WP# is low, the status register is write-protected.
  • The device density and organization can be determined by reading the JEDEC ID (0xEF, 0x40, 0x16) and the device ID (0x13, 0x40, 0x16).
  • The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal.
