The W25X64VSFIG has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
The hold signal (HOLD#) should be kept low during a write operation to prevent any other device from accessing the bus. If another device needs to access the bus, the hold signal should be driven high to release the bus.
The WP# (Write Protect) pin is used to prevent accidental writes to the device. When the WP# pin is driven low, the device is in write-protect mode, and any write operations will be ignored. To use the WP# pin, connect it to VCC or GND depending on the desired write protection state.
The optimal clock frequency depends on the specific application and system requirements. The W25X64VSFIG supports clock frequencies up to 104 MHz. It's recommended to consult the datasheet and application notes for guidance on selecting the optimal clock frequency.
The recommended power-up sequence is to apply VCC first, followed by the clock signal (CLK), and then the chip select signal (CS#). This ensures that the device is properly initialized and ready for operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25X64VSFIG Overview

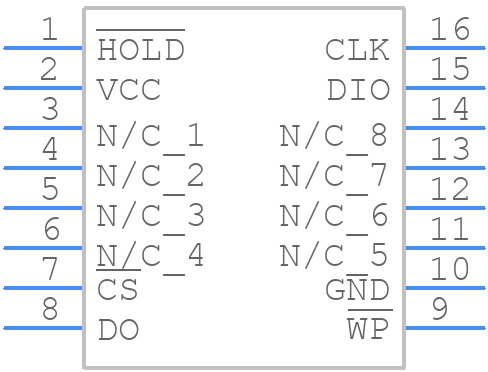

Use the download button to access the W25X64VSFIG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W25X6,
or try a keyword search, such as Flash Memories
