W2H15C1038AT1F footprint, schematic symbol and 3D model by Kyocera AVX

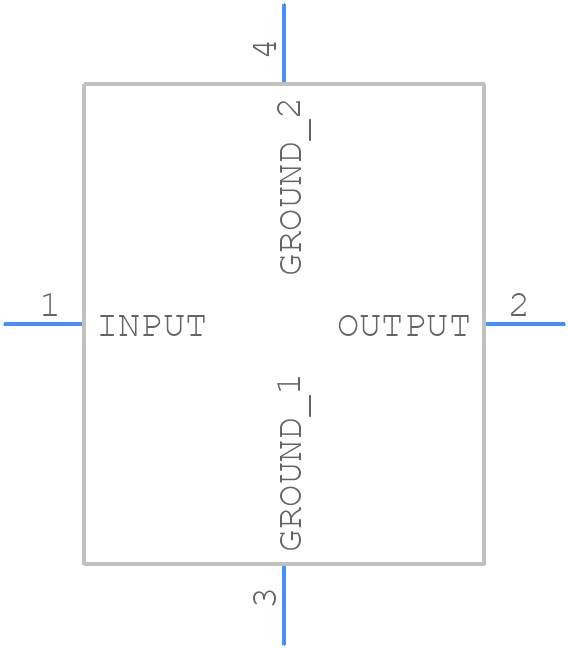

Symbol

click to zoom

PCB Footprints

W2H15C1038AT1F - Kyocera AVX PCB footprint - Other - Other - 0805_2025-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for W2H15C1038AT1F
Part Number W2H15C1038AT1F
Manufacturer Kyocera AVX
Pin Count 4
Part Category Filter
Package Category Other
Footprint Name Other - 0805_2025-3
Released Date Apr 10, 2025
Last Modified Date Jun 22, 2025 3:11 PM UTC
Pinout / Pin List Click Here (Member Only)

W2H15C1038AT1F Details

Manufacturer Part Number:
W2H15C1038AT1F
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Factory Lead Time:
14 Weeks
Manufacturer:
Kyocera AVX Components
YTEOL:
6.89
Capacitance:
10000 µF
DC Resistance-Max:
0.15 Ω
Filter Type:
FEED THROUGH CAPACITOR
Height:
1.14 mm
Insulation Resistance-Min:
1000 MΩ
JESD-609 Code:
e3
Length:
2.01 mm
Mounting Type:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
4
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Packing Method:
TR, EMBOSSED, 7 INCH
Rated Current:
1 A
Rated Voltage:
50 V
Terminal Finish:
TIN OVER NICKEL
Width:
1.25 mm

W2H15C1038AT1F Frequently Asked Questions (FAQs)

The recommended land pattern for W2H15C1038AT1F can be found in the Kyocera AVX Components' recommended land pattern document, which is available on their website. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
While the datasheet specifies an operating temperature range of -55°C to +125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature applications. Consult with Kyocera AVX Components' application engineers or technical support for guidance on specific use cases.
The W2H15C1038AT1F is a high-frequency capacitor, but its performance at high frequencies depends on various factors, such as PCB layout, impedance matching, and parasitic effects. Consult with Kyocera AVX Components' application engineers or technical support for guidance on optimizing high-frequency performance.
Yes, W2H15C1038AT1F is compatible with lead-free soldering processes. Kyocera AVX Components ensures that their components meet the requirements of the RoHS directive and are compatible with lead-free soldering processes.
The typical ESL (Equivalent Series Inductance) and ESR (Equivalent Series Resistance) values for W2H15C1038AT1F are not explicitly stated in the datasheet. However, Kyocera AVX Components can provide these values upon request or through their simulation models and tools.

Trust Checks

Community Provided

System Verified

Community Approved

W2H15C1038AT1F Overview

Use the download button to access the W2H15C1038AT1F schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like W2H15, or try a keyword search, such as Data Line Filters
