W2H15C4738AT1F - Kyocera AVX

Description: Feed Through Capacitors 50V .047uF X7R

Download W2H15C4738AT1F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

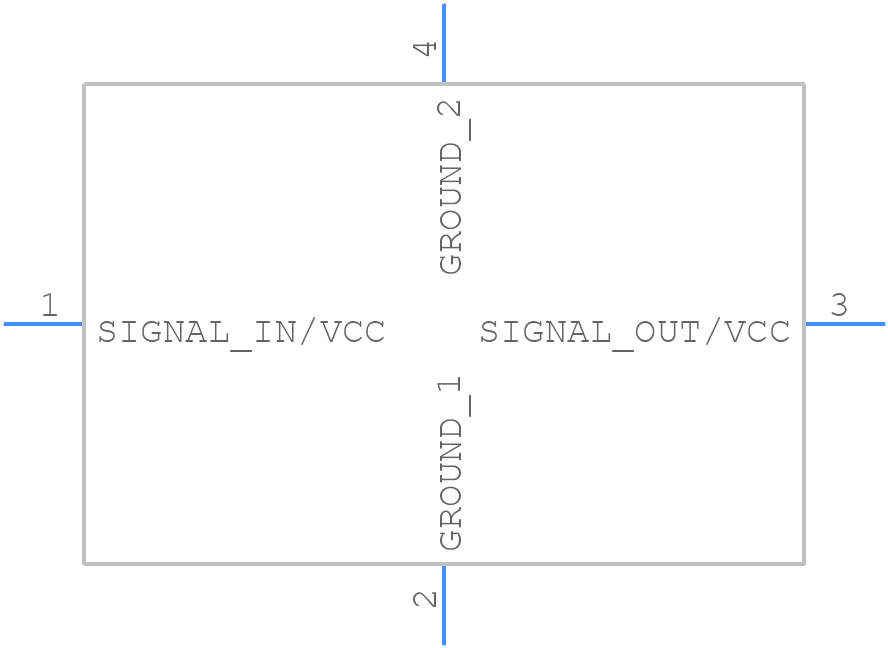

Symbol
W2H15C4738AT1F - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints
W2H15C4738AT1F - Kyocera AVX PCB footprint - Other - Other - W2H15C4738AT1A-2
click to zoom
3D Models
W2H15C4738AT1F - Kyocera AVX - 3D model - Other - W2H15C4738AT1A-2
click to zoom

W2H15C4738AT1F Details

  • Manufacturer Part Number:

    W2H15C4738AT1F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.89

  • Capacitance:

    47000 µF

  • DC Resistance-Max:

    0.15 Ω

  • Filter Type:

    FEED THROUGH CAPACITOR

  • Height:

    1.14 mm

  • Insulation Resistance-Min:

    1000 MΩ

  • JESD-609 Code:

    e3

  • Length:

    2.01 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    2 A

  • Rated Voltage:

    50 V

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Width:

    1.25 mm

W2H15C4738AT1F Frequently Asked Questions (FAQs)

  • The recommended land pattern for W2H15C4738AT1F is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
  • Yes, W2H15C4738AT1F is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency (SRF).
  • W2H15C4738AT1F is rated for operation up to 125°C, making it suitable for high-temperature environments. However, the capacitance value may decrease by up to 20% at the maximum operating temperature.
  • Yes, W2H15C4738AT1F is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5.
  • The maximum voltage derating for W2H15C4738AT1F is 80% of the rated voltage, which is 15V for this specific part number.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

W2H15C4738AT1F Overview

Use the download button to access the W2H15C4738AT1F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W2H15, or try a keyword search, such as Data Line Filters

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
