W3114TRC - Winslow

Description: Winslow W3100 2.54mm Pitch Vertical 14 Way, Through Hole Stamped pin Open Frame IC Dip Socket, 10A

Download W3114TRC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

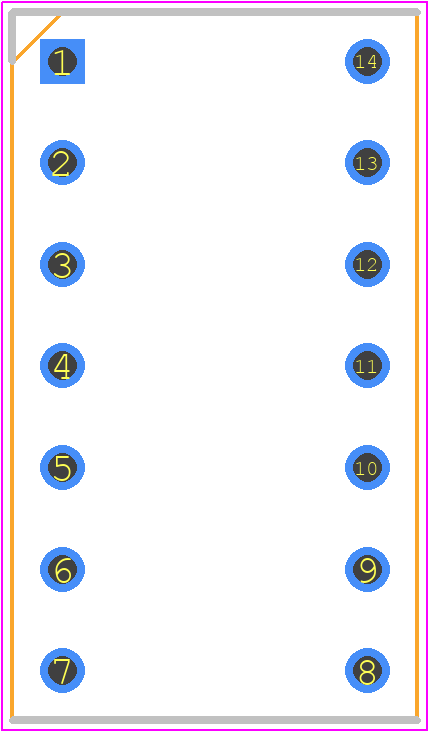

W3114TRC - Winslow PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - W3114TRC
click to zoom

W3114TRC Details

  • Manufacturer Part Number:

    W3114TRC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Winslow Adaptics Ltd

  • Contact Finish Mating:

    PURE TIN (236) OVER NICKEL (98)

  • Contact Finish Termination:

    Pure Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    PHOSPHOR BRONZE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP14

  • Housing Material:

    POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • Number of Contacts:

    14

W3114TRC Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves placing the W3114TRC near the edge of the board to minimize thermal resistance. A thermal pad or heat sink is recommended to dissipate heat. A minimum of 2oz copper thickness and a 1-inch square copper pour on the bottom layer is recommended for optimal thermal performance.
  • To ensure reliable operation in high-vibration environments, it is recommended to use a secure mounting method, such as screwing or adhesive, to prevent the device from shifting or detaching. Additionally, consider using a vibration-dampening material, such as a silicone adhesive, to reduce the impact of vibrations on the device.
  • The recommended soldering parameters for the W3114TRC are: peak temperature of 240°C, dwell time of 3-5 seconds, and a soldering iron tip temperature of 350°C. It is also recommended to use a solder with a melting point of 217°C or higher.
  • To troubleshoot common issues, start by checking the power supply voltage and current, as well as the ambient temperature. Verify that the device is properly mounted and that the thermal management system is functioning correctly. Check for signs of physical damage or contamination. If the issue persists, consult the datasheet and application notes or contact Winslow Adaptics Ltd support for further assistance.
  • Yes, the W3114TRC is a high-frequency device and requires proper EMI/EMC design considerations. It is recommended to use a shielded enclosure, keep the device away from other high-frequency components, and use EMI-absorbing materials. Additionally, ensure that the PCB layout and routing are designed to minimize radiation and coupling.
