Part Image

W631GG6NB12K - Winbond

Description: Power Supply: VDD, VDDQ = 1.5V ± 0.075V ⚫ Double Data Rate architecture: two data transfers per clock cycle ⚫ Eight internal banks for concurrent operation ⚫ 8 bit prefetch architecture ⚫ CAS Latency: 5, 6, 7, 8, 9, 10, 11, 13 and 14 ⚫ Burst length 8 (BL8) and burst chop 4 (BC4) modes: fixed via mode register (MRS) or selectable OnThe-Fly (OTF) ⚫ Programmable read burst ordering: interleaved or nibble sequential ⚫ Bi-directional, differential data strobes (DQS and DQS#) are transmitted / received wit

Download W631GG6NB12K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

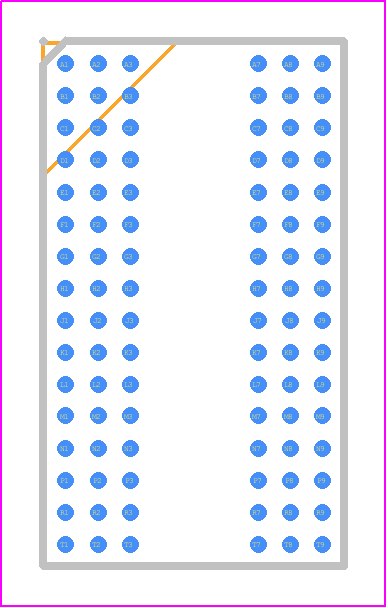

W631GG6NB12K - Winbond PCB footprint - BGA - BGA - VFBGA96
click to zoom
3D Models
W631GG6NB12K - Winbond  - 3D model - BGA - VFBGA96
click to zoom

W631GG6NB12K Details

  • Manufacturer Part Number:

    W631GG6NB12K

  • Manufacturer:

    Winbond Electronics Corp

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

W631GG6NB12K Overview

Use the download button to access the W631GG6NB12K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W631G, or try a keyword search, such as DRAMs
