The recommended operating temperature range for the W631GU6MB15I is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, which is -55°C to 125°C.
The power-up sequence for the W631GU6MB15I is critical to ensure proper operation. It's recommended to power up the VCC supply before the VPP supply, and the VCC supply should be stable before applying the clock signal. Additionally, the VPP supply should be powered up after the VCC supply has reached its stable state.
The maximum clock frequency supported by the W631GU6MB15I is 166 MHz, as specified in the datasheet. However, it's essential to note that the actual clock frequency may vary depending on the system design and operating conditions.
The W631GU6MB15I has a built-in write protection mechanism that can be implemented using the WP# pin. By pulling the WP# pin low, the device enters write protection mode, and any write operations will be ignored. To disable write protection, the WP# pin should be pulled high.
The typical programming time for the W631GU6MB15I varies depending on the programming method and the size of the data being programmed. However, according to the datasheet, the typical programming time for a single byte is around 10-15 μs, and for a sector, it's around 2-3 seconds.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W631GU6MB15I Overview

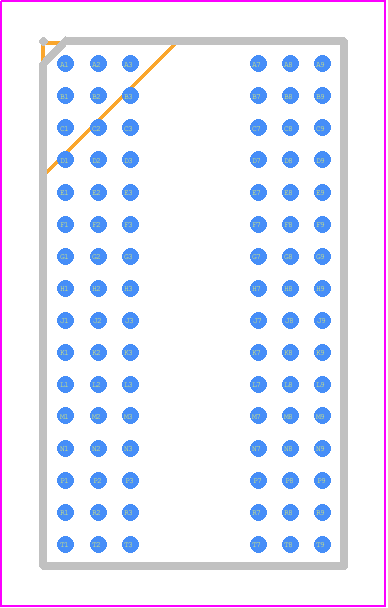

Use the download button to access the W631GU6MB15I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W631G,
or try a keyword search, such as DRAMs
