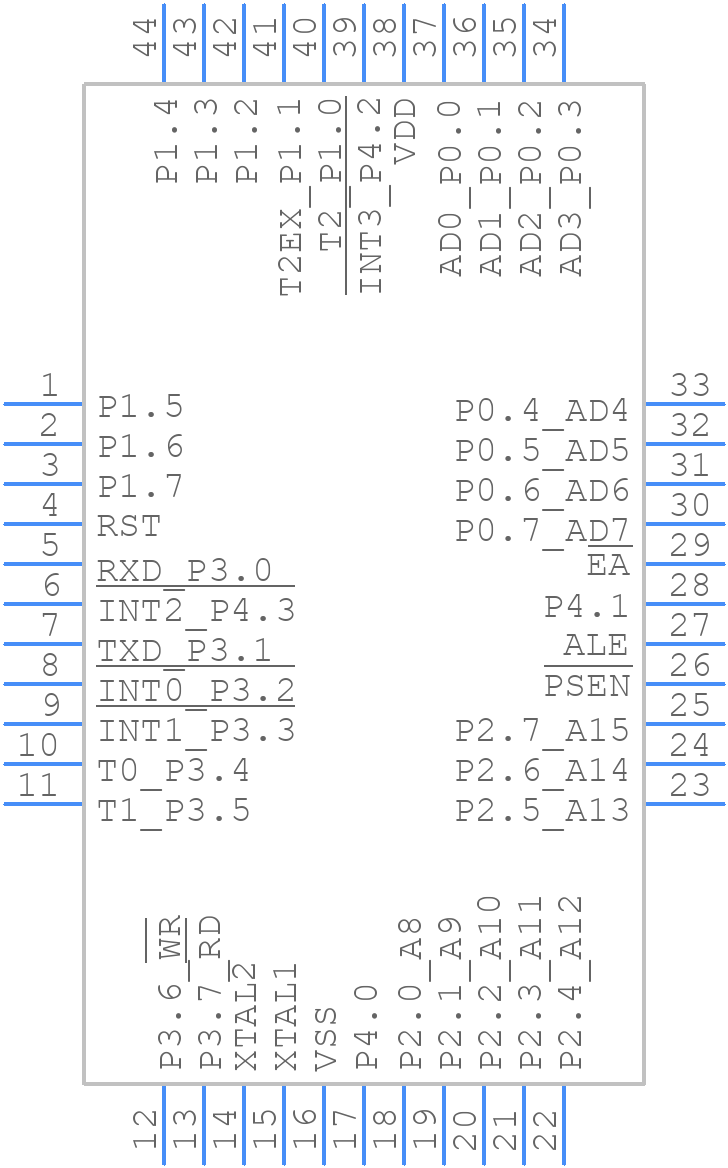

W78E516DFG - Nuvoton

W78E516DFG Details

• Manufacturer Part Number:

  W78E516DFG

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  PQFP-44

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Nuvoton Technology Corp

• YTEOL:

  0

• Has ADC:

  NO

• Address Bus Width:

  16

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  8052

• Clock Frequency-Max:

  40 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• External Data Bus Width:

  8

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQFP-G44

• Length:

  10 mm

• Low Power Mode:

  YES

• Number of External Interrupts:

  4

• Number of I/O Lines:

  36

• Number of Serial I/Os:

  1

• Number of Terminals:

  44

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP44,.52SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• RAM (words):

  512

• ROM (words):

  69632

• ROM Programmability:

  FLASH

• Seated Height-Max:

  2.7 mm

• Speed:

  40 MHz

• Supply Current-Max:

  0.05 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  10 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
