W9325-ZC158 - Winslow

Description: Winslow Right Angle SMT 1.27mm Pitch IC Socket Adapter, 44 Pin Male PLCC to 44 Pin Male PLCC

Download W9325-ZC158 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

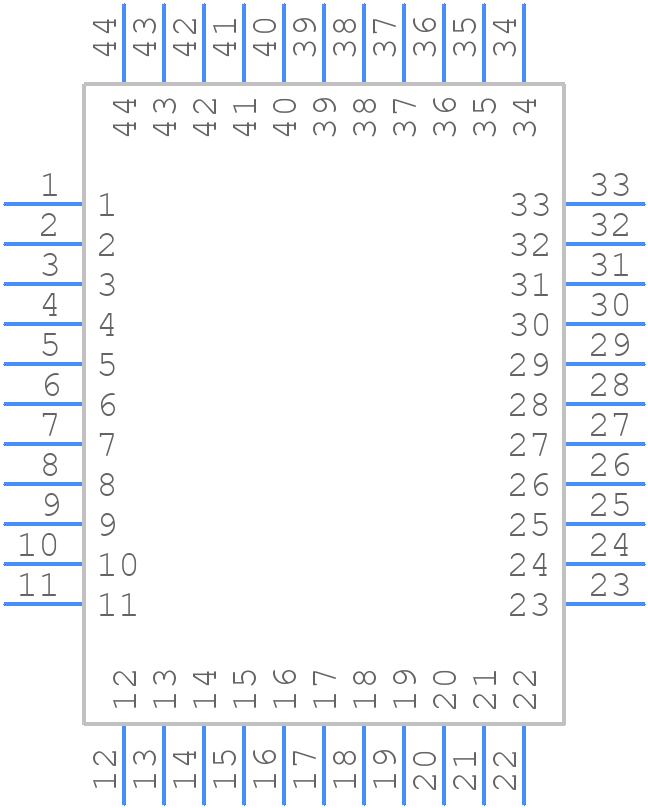

W9325-ZC158 - Winslow - PCB symbol
click to zoom
PCB Footprints

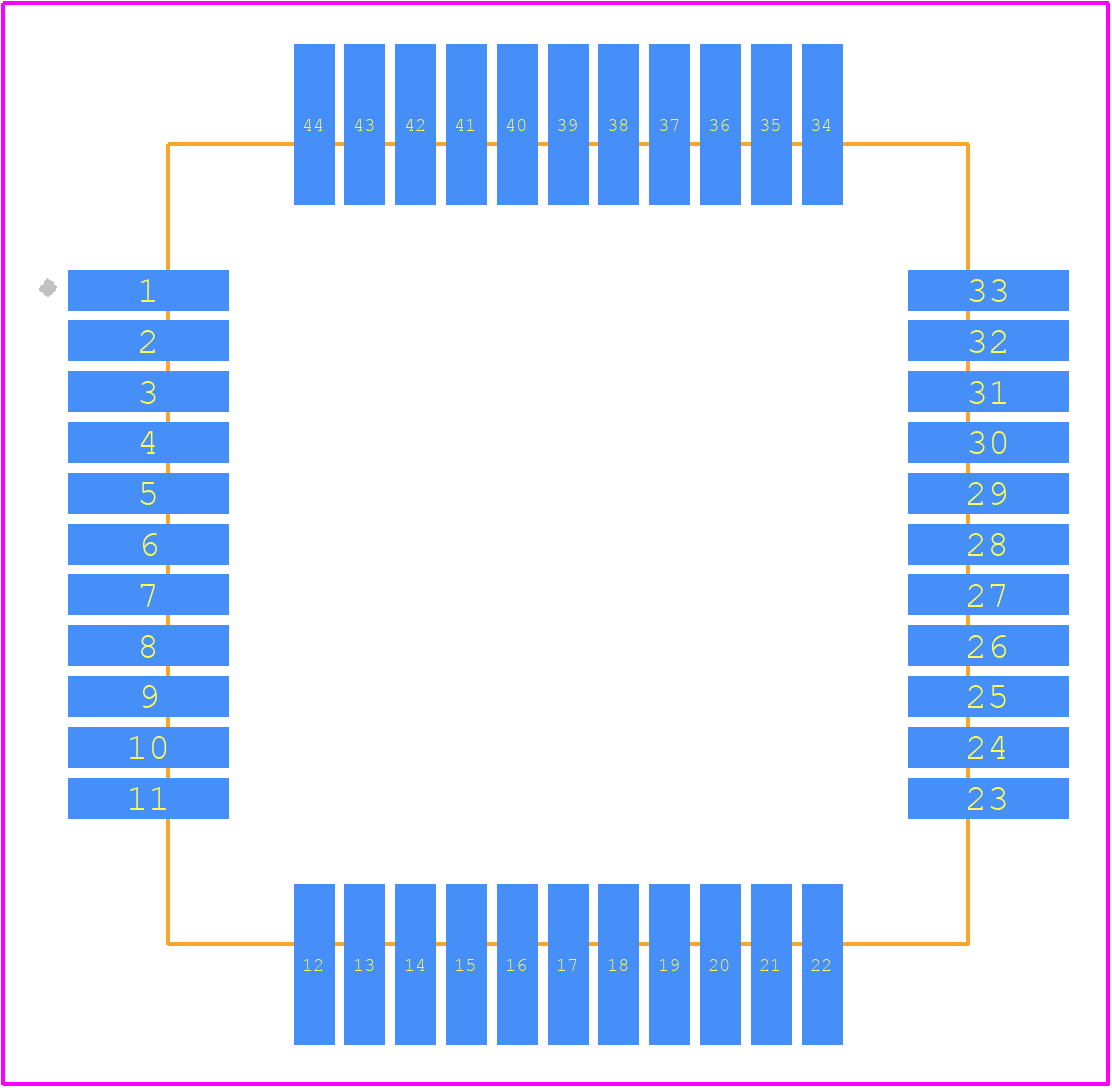

W9325-ZC158 - Winslow PCB footprint - Other - Other - W9325-ZC158
click to zoom
3D Models
W9325-ZC158 - Winslow - 3D model - Other - W9325-ZC158
click to zoom

W9325-ZC158 Details

  • Manufacturer Part Number:

    W9325-ZC158

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Winslow Adaptics Ltd

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC44

  • Number of Contacts:

    44

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

W9325-ZC158 Overview

Use the download button to access the W9325-ZC158 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W9325, or try a keyword search, such as Sockets and Chip Carriers
