W9825G6KH-5I - Winbond

Description: SDRAM Memory IC 256Mbit Parallel 200 MHz 5 ns 54-TSOP II

Download W9825G6KH-5I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

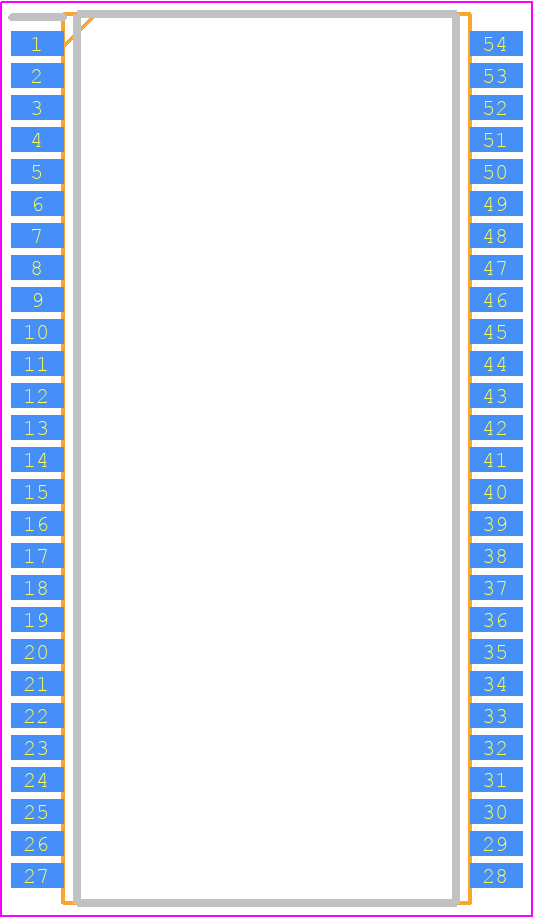

W9825G6KH-5I - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - TSOPII - 54
click to zoom
3D Models
W9825G6KH-5I - Winbond  - 3D model - Small Outline Packages - TSOPII - 54
click to zoom

W9825G6KH-5I Details

  • Manufacturer Part Number:

    W9825G6KH-5I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.24

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    4

  • Access Mode:

    FOUR BANK PAGE BURST

  • Access Time-Max:

    4.5 ns

  • Additional Feature:

    AUTO/SELF REFRESH

  • JESD-30 Code:

    R-PDSO-G54

  • Length:

    22.22 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    SYNCHRONOUS DRAM

  • Memory Width:

    16

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    54

  • Number of Words:

    16777216 words

  • Number of Words Code:

    16000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    16MX16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP2

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.2 mm

  • Self Refresh:

    YES

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    10.16 mm

W9825G6KH-5I Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the W9825G6KH-5I is 0°C to 70°C, with an extended temperature range of -40°C to 85°C for industrial applications.
  • The power-up sequence for the W9825G6KH-5I is critical. It's recommended to power up the VCC supply before the VPP supply, and ensure that the VCC supply is stable before applying the VPP supply.
  • The W9825G6KH-5I supports a maximum clock frequency of 133 MHz, but it's recommended to operate at a frequency of 100 MHz or lower for optimal performance and reliability.
  • The W9825G6KH-5I has a built-in write protection mechanism that can be enabled by setting the WP pin high. Additionally, the device also supports software-based write protection through the use of specific commands and registers.
  • The typical programming time for the W9825G6KH-5I is around 10-15 seconds for a full chip erase, and around 1-2 seconds for a sector erase. However, this time may vary depending on the programming algorithm and the specific use case.
