WB2010-1-SMLB footprint, schematic symbol and 3D model by COILCRAFT

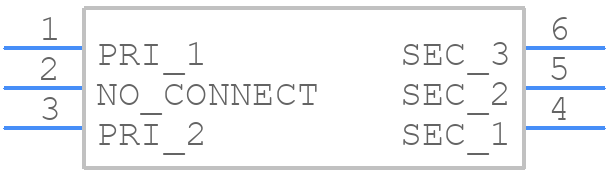

Symbol

click to zoom

PCB Footprints

WB2010-1-SMLB - COILCRAFT PCB footprint - Other - Other - WB2010-1-SMLB-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for WB2010-1-SMLB
Part Number WB2010-1-SMLB
Manufacturer COILCRAFT
Pin Count 6
Part Category Transformer
Package Category Other
Footprint Name Other - WB2010-1-SMLB-1
Released Date Aug 8, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

WB2010-1-SMLB Details

Manufacturer Part Number:
WB2010-1-SMLB
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
0
Additional Feature:
IMPEDANCE RATIO IS 1 : 1
Cut-off Frequency-Max:
175 MHz
Cut-off Frequency-Min:
0.04 MHz
Height:
5.72 mm
JESD-609 Code:
e3
Length:
8.26 mm
Mounting Feature:
SURFACE MOUNT
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Packing Method:
TR
Primary Inductance:
95 µH
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - with Nickel (Ni) barrier
Transformer Type:
RF TRANSFORMER
Width:
7.24 mm

WB2010-1-SMLB Frequently Asked Questions (FAQs)

The recommended land pattern for WB2010-1-SMLB is a rectangular pad with a size of 1.3 mm x 0.8 mm, with a non-solder mask defined (NSMD) pad shape.
To ensure reliable soldering, use a soldering temperature of 260°C (500°F) for 3-5 seconds, and ensure the component is properly aligned with the land pattern. Also, use a solder with a melting point of 217°C (423°F) or higher.
The maximum current rating for WB2010-1-SMLB is 1.5 A, but it's recommended to derate the current to 1.2 A for reliable operation.
WB2010-1-SMLB is designed for high-frequency applications and exhibits low insertion loss and high impedance up to 1 GHz. However, it's recommended to use simulation tools or consult with Coilcraft's application engineers for specific design guidance.
Yes, WB2010-1-SMLB is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
