WL1V477M10020PA - SAMWHA

Description: Buy WL1V477M10020PA WL 470uF 35V 20% 10x20/5,0 from SAMWHA on Rutronik24. | Get price and stock infos ✓ lead time ✓ datasheets ✓ and parameters ✓.

Download WL1V477M10020PA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
WL1V477M10020PA - SAMWHA - PCB symbol
click to zoom
PCB Footprints

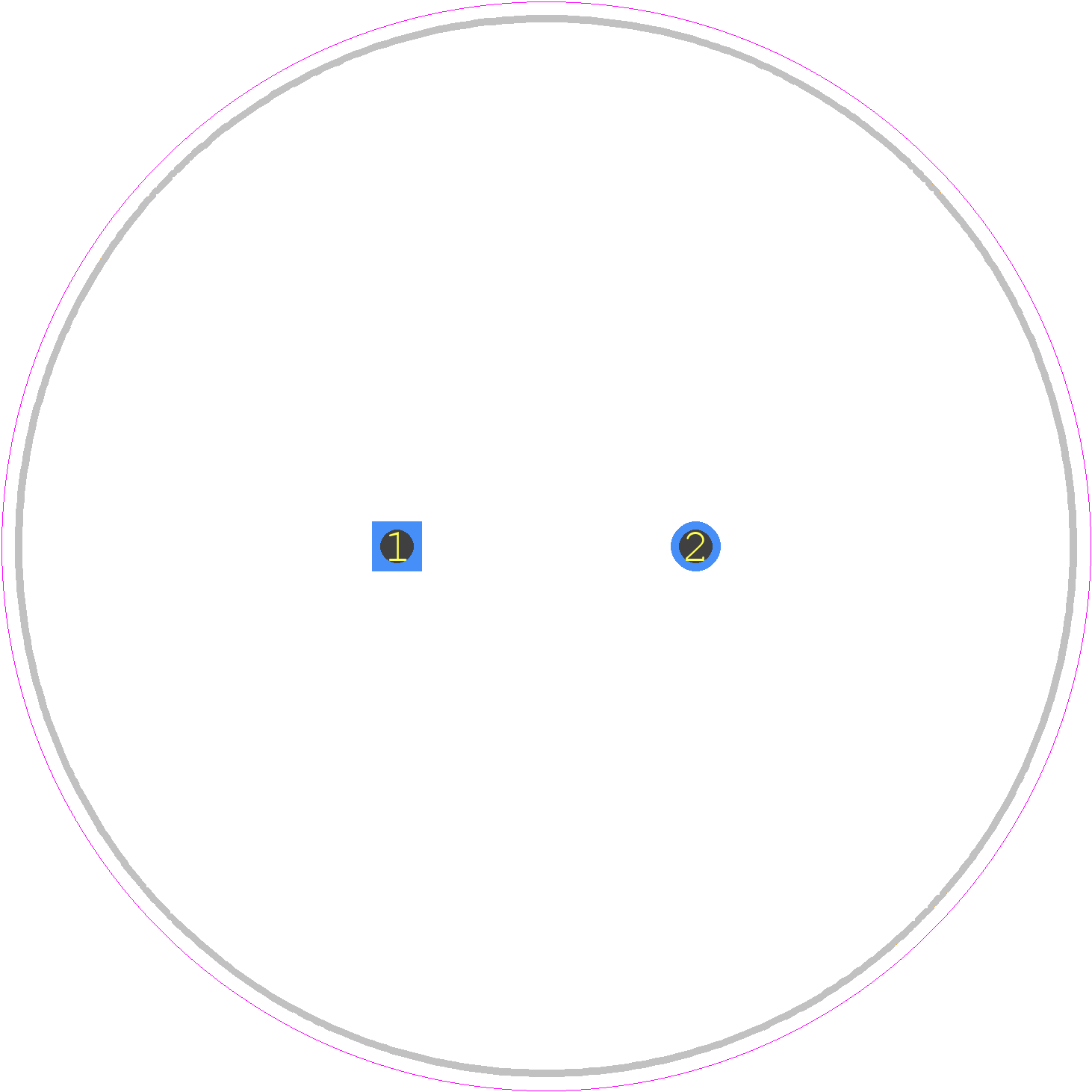

WL1V477M10020PA - SAMWHA PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35 x 50_1
click to zoom
3D Models
WL1V477M10020PA - SAMWHA - 3D model - Capacitor, Polarized Radial Diameter - 35 x 50_1
click to zoom

WL1V477M10020PA Details

  • Manufacturer Part Number:

    WL1V477M10020PA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED, ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, South Korea

  • ECCN Code:

    EAR99

  • Manufacturer:

    Samwha Electronics

  • YTEOL:

    7

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Packing Method:

    AMMO PACK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    605 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.12

  • Terminal Shape:

    WIRE

WL1V477M10020PA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
  • Yes, the WL1V477M10020PA capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly and sustainable designs.
  • The ESR of the WL1V477M10020PA capacitor is typically around 10-20 mΩ at 100 kHz. However, it's recommended to consult the datasheet or contact Samwha Electronics for the most up-to-date and accurate ESR values.
  • While the WL1V477M10020PA capacitor is designed to be reliable and robust, it's essential to consult the datasheet and Samwha Electronics' application notes for guidance on using the capacitor in high-vibration or high-shock applications. Additional testing and validation may be required to ensure the capacitor meets the specific application requirements.
  • It's recommended to store WL1V477M10020PA capacitors in a dry, cool place with a temperature range of 10°C to 30°C (50°F to 86°F) and humidity below 70%. Avoid storing the capacitors in direct sunlight, high-temperature environments, or areas with high humidity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

WL1V477M10020PA Overview

Use the download button to access the WL1V477M10020PA schematic symbol, PCB footprint, and 3D model.
