WM8580AGEFT/V - Cirrus Logic

Description: Interface - CODECs 6-Ch. CODEC with S/PDIF

Download WM8580AGEFT/V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

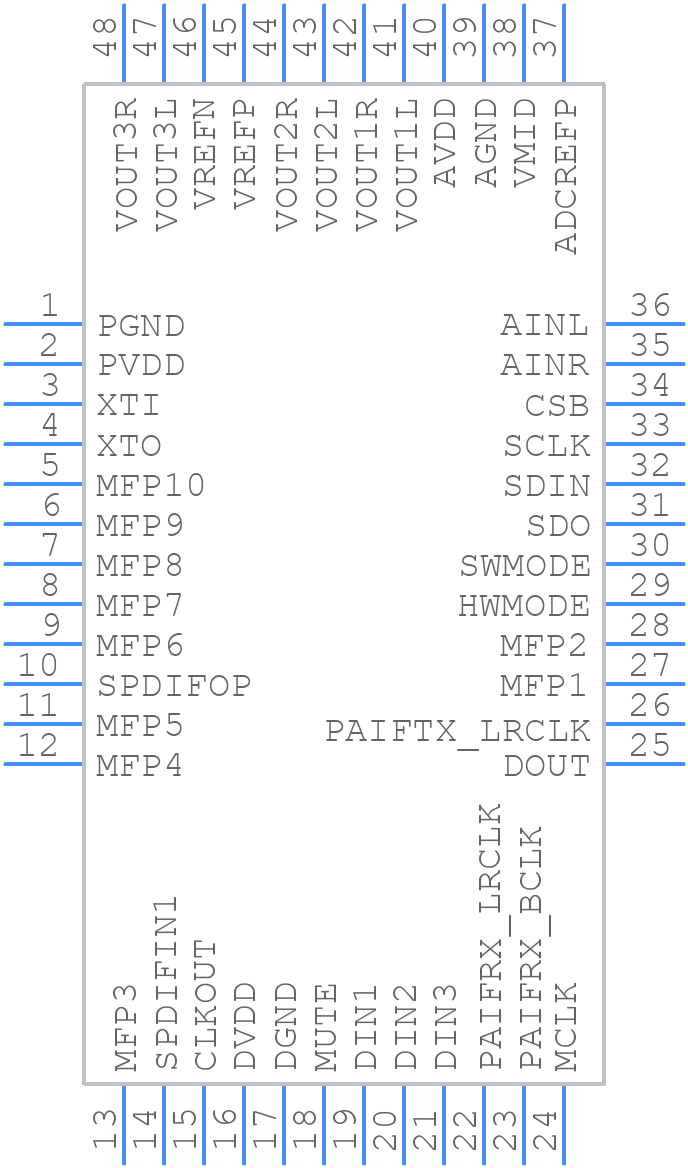

WM8580AGEFT/V - Cirrus Logic - PCB symbol
click to zoom
PCB Footprints
WM8580AGEFT/V - Cirrus Logic PCB footprint - Quad Flat Packages - Quad Flat Packages - WM8580AGEFT/V
click to zoom
3D Models
WM8580AGEFT/V - Cirrus Logic - 3D model - Quad Flat Packages - WM8580AGEFT/V
click to zoom

WM8580AGEFT/V Details

  • Manufacturer Part Number:

    WM8580AGEFT/V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    7 X 7 MM, 1 MM HEIGHT, LEAD FREE, MS-026ABC, TQFP-48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Filter:

    YES

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    PCM CODEC

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

WM8580AGEFT/V Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDA, and then the clock signal. This ensures proper initialization of the device.
  • Optimization depends on the specific application. However, in general, it's recommended to adjust the gain settings, filter coefficients, and clock frequencies to suit the specific requirements of your application.
  • The maximum allowed capacitance for the analog input pins is 10nF. Exceeding this value may affect the device's performance and stability.
  • Yes, the WM8580 can be used with separate analog and digital power supplies. However, it's essential to ensure that the power supplies are properly decoupled and filtered to prevent noise and interference.
  • To troubleshoot I2S interface issues, check the clock frequency, data format, and slave/master mode settings. Ensure that the I2S interface is properly configured and that the clock signal is stable and within the specified frequency range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

WM8580AGEFT/V Overview

Use the download button to access the WM8580AGEFT/V schematic symbol, PCB footprint, and 3D model.
