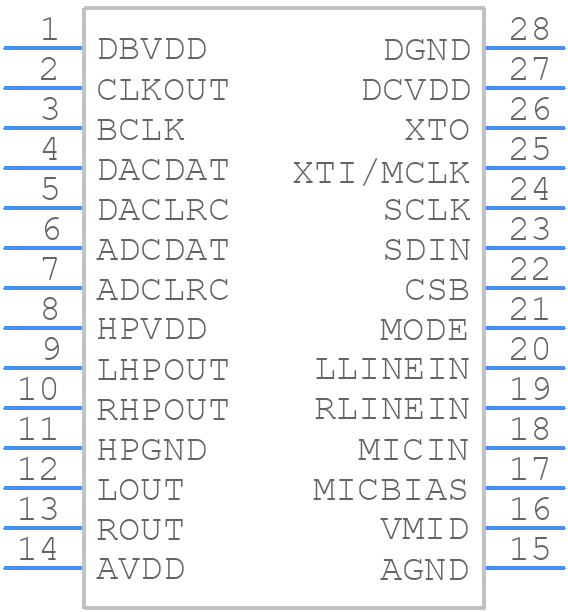

WM8731SEDS/RV - WOLFSON MICROELECTRONICS

WM8731SEDS/RV Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the WM8731?
  The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures that the analog circuitry is stable before the digital circuitry is enabled.
• How do I configure the WM8731 for master clock mode?
  To configure the WM8731 for master clock mode, set the MCLK pin to the desired clock frequency, and set the BCLK pin to the desired bit clock frequency. Then, set the LRCLK pin to the desired left-right clock frequency. Finally, set the M/S pin to '1' to enable master clock mode.
• What is the maximum input voltage for the analog inputs?
  The maximum input voltage for the analog inputs is 2.5V peak-to-peak. Exceeding this voltage may cause distortion or damage to the device.
• How do I reduce EMI emissions from the WM8731?
  To reduce EMI emissions from the WM8731, use a ground plane, keep digital and analog traces separate, and use shielding or filtering on the analog inputs. Additionally, ensure that the device is properly decoupled and that the power supply is clean and stable.
• What is the recommended layout for the WM8731?
  The recommended layout for the WM8731 is to keep the analog and digital sections separate, with the analog section placed near the analog inputs and the digital section placed near the digital outputs. Use a star-ground configuration and keep the power supply decoupling capacitors close to the device.
