The recommended power-up sequence is to apply the analog power supply (VDDA) first, followed by the digital power supply (VDDD). This ensures that the analog circuitry is powered up before the digital circuitry.
To minimize jitter, use a high-quality clock source, keep the clock signal path as short as possible, and use a clock frequency that is a multiple of the sampling frequency. Additionally, use the WM8742's internal clock multiplier to reduce jitter.
The maximum allowed capacitance for the analog input pins is 10nF. Exceeding this value may affect the device's performance and stability.
Yes, it is recommended to use separate analog and digital ground planes to minimize noise coupling and ensure optimal performance. However, ensure that the two ground planes are connected at a single point to prevent ground loops.
To configure the WM8742 for Master Clock mode, set the MCLK pin to the desired clock frequency, and set the BCK pin to the desired bit clock frequency. Additionally, set the LRCK pin to the desired left-right clock frequency, and configure the device for Master mode using the SPI interface.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
WM8742GEDS/V Overview

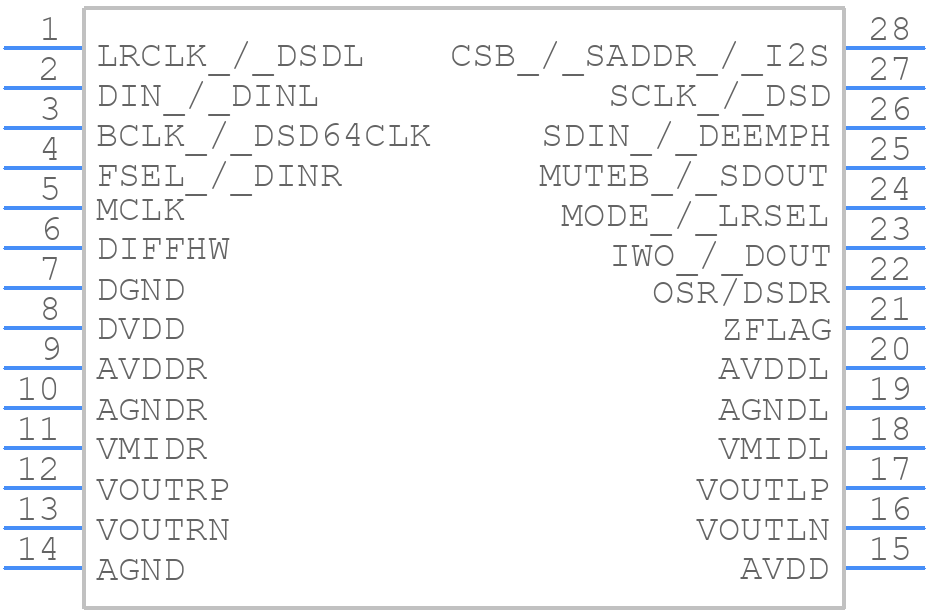

Use the download button to access the WM8742GEDS/V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WM874,
or try a keyword search, such as Digital to Analog Converters
