WM8750CBLGEFL - Cirrus Logic

Description: IC CODEC STEREO PORTABLE 32QFN

Download WM8750CBLGEFL Model

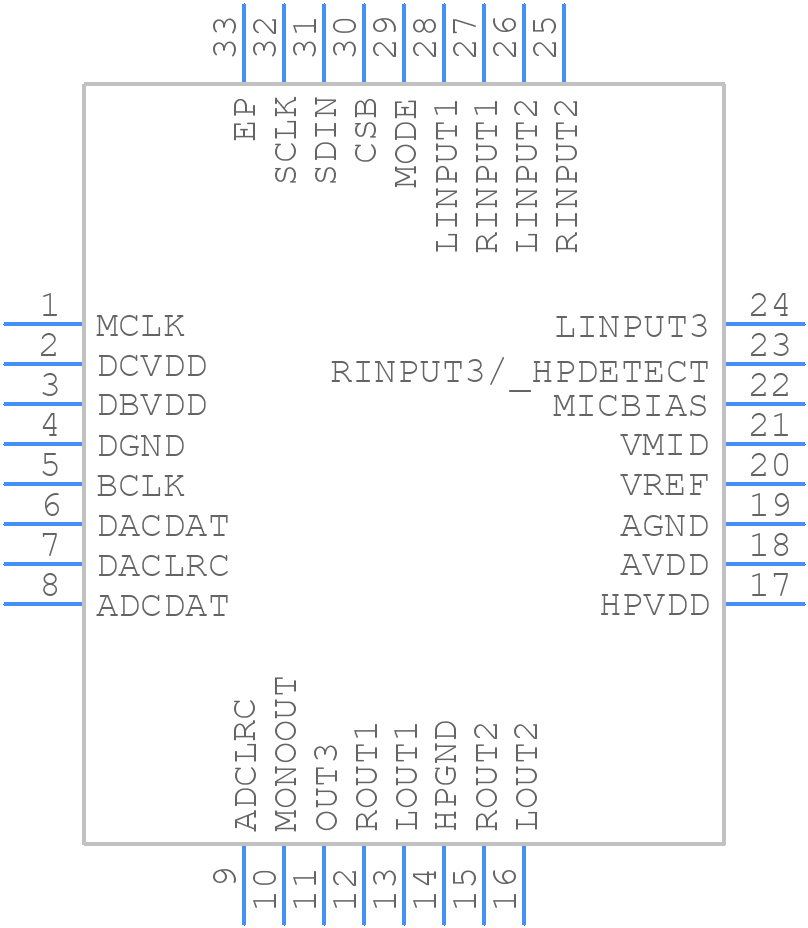

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
WM8750CBLGEFL - Cirrus Logic PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - FL: 32 PIN QFN PLASTIC PACKAGE 5 X 5 X 0.9
click to zoom
3D Models
WM8750CBLGEFL - Cirrus Logic  - 3D model - Quad Flat No-Lead - FL: 32 PIN QFN PLASTIC PACKAGE 5 X 5 X 0.9
click to zoom

WM8750CBLGEFL Details

  • Manufacturer Part Number:

    WM8750CBLGEFL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    5 X 5 MM, 0.90 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, PLASTIC, MO-220VHHD-5, QFN-32

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Filter:

    YES

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    PCM CODEC

  • Temperature Grade:

    OTHER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

WM8750CBLGEFL Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
  • To configure the WM8750 for master clock mode, set the MCLK pin as an output by setting the MCLKOE bit in the Clock Control Register (CKCNTRL). Then, set the desired clock frequency using the MCLKDIV and MCLKFRQ registers.
  • The digital mute pin (DMUTE) is used to mute the digital audio output. When DMUTE is high, the digital audio output is muted, and when it's low, the output is enabled.
  • To optimize power consumption, use the Power Management Register (PWRCNTRL) to control the power-down modes of the device. Additionally, use the Dynamic Voltage and Frequency Scaling (DVFS) feature to adjust the clock frequency and voltage supply based on the system's requirements.
  • The maximum allowed capacitance for the WM8750's analog inputs is 10nF. Exceeding this value may affect the device's performance and stability.
